R 313 Litronic Liebherr excavator specs & Dimensions (2011 - 2013)

Liebherr R 313 Litronic is a crawler excavator manufactured from 2011 to 2013, with a weight of 14.9 tons. It features a track wid…

Liebherr R 313 Litronic is a crawler excavator manufactured from 2011 to 2013, with a weight of 14.9 tons. It features a track width of 600 mm, a transport length of 8 meters, a transport width of 2.6 meters, and a transport height of 2.91 meters. The excavator is equipped with an overload alert system.

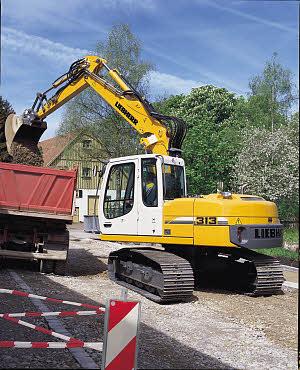

Crawler Excavators Liebherr R 313 Litronic

Visit Liebherr live at

Technical specs - R 313 Litronic Liebherr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
14.9 t
Transport length
8 m
Transport width
2.6 m
Transport height
2.91 m
Bucket capacity
0.5 m³
Track width
600 mm
Boom
MB
Max. Reach horizontal
8.2 m
Dredging depth
5.5 m
Tear-out force
67.9 kN
Bucket width
0.85 m
Model series
R
Engine manuf.
Deutz
Engine type
TCD2012 L04
Engine power
76 kW
Displacement
4.038 l
Revolutions at max torque
1800 rpm

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Liebherr R 313 Litronic FAQ

When was the Liebherr R 313 Litronic manufactured?

The Liebherr R 313 Litronic was manufactured from 2011 to 2013.

How much does the Liebherr R 313 Litronic weigh?

The Liebherr R 313 Litronic weighs 14.9 tons.

What are the transport dimensions of the Liebherr R 313 Litronic?

The Liebherr R 313 Litronic has a transport length of 8 meters, a transport width of 2.6 meters, and a transport height of 2.91 meters.

What is the track width of the Liebherr R 313 Litronic's undercarriage?

The Liebherr R 313 Litronic has a track width of 600 mm.

What are the excavation performance specifications of the Liebherr R 313 Litronic?

The Liebherr R 313 Litronic has a dredging depth of 5.5 meters, a maximum horizontal reach of 8.2 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Liebherr R 313 Litronic?

The Liebherr R 313 Litronic has a tear-out force of 67.9 kN.

What are the specifications of the primary work tool on the Liebherr R 313 Litronic?

The primary work tool of the Liebherr R 313 Litronic has a bucket capacity of 0.5 cubic meters and a bucket width of 0.85 meters.

How much is a Liebherr R 313 Litronic Crawler excavator (2011u20132013) worth?

The residual value of the Liebherr R 313 Litronic depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Liebherr R 313 Litronic overview

Engine

Optimum loading performance

Maximum output and maximum power are available at all times and without restriction, thereby guaranteeing excellent loading efficiency. The Liebherr Litronic system controls the machine precisely, enabling maximum sensitivity and exacting operation in many fields of application. The excavation attachments manufactured by Liebherr are designed specifically for high filling factors. The bucket shape affords excellent penetration characteristics and ensures outstanding efficiency.


Low operating costs

The efficient transfer of engine power into hydraulic power equals an optimum utilisation of output. This results in a higher working speed and lower fuel consumption. A hydraulically adjustable jib, an offset boom, a monoblock boom and an offset monoblock boom are available for the R 313 Litronic for different applications.


Hydraulic and electronic system

Large hydraulic system

The large system and tank capacity ensures consistently good oil characteristics throughout the entire replacement interval. The hydraulic components are subjected to less stress and thus have a longer lifetime.


Dependable details

The Liebherr centrifugal fuel filtering system comes as standard and reliably filters out water and dirt particles. The standard magnetic rod in the hydraulics system increases the lifespan of the oil.


Undercarriage

Lift Capacities with Hydr. Adjustable Boom 3.20 m

The lift capacities on the load hook of the Liebherr quick-change adapter 33 without grab attachment are stated in metric tons (t) and are valid on a firm, level supporting surface. These capacities can be slewed through 360° with the undercarriage in the transverse position. Capacities in the longitudinal position of the undercarriage (+/- 15°) are specified over the stabilisers with the stabilisers down. The values apply to track pads measuring 600 mm in width when the adjusting cylinder is in the optimal position. Indicated loads comply with the ISO 10567 standard and do not exceed 75 % of tipping or 87 % of hydraulic capacity, or are limited by the permissible load of the load hook on the quick-change adapter (max. 5 t). Without the quick-change adapter, lift capacities will increase by up to 110 kg. In accordance with the harmonised EU Standard EN 474-5, hydraulic excavators used for lifting operations must be equipped with pipe rupture protection devices on the hoist cylinders and an overload warning device.


Cab

Comfort in the workplace

Large glass panels and sloping edges ensure optimum visibility over the entire site, guaranteeing relaxed and efficient machine operation. Numerous storage options and additional compartments mean that everything has its place. Low speeds, sophisticated sound-proofing and optimised Liebherr hydraulic components combine to ensure extraordinarily low sound values, comparable with those of a modern diesel car.
