HD820III Kato excavator specs & Dimensions (2005 - 2023)

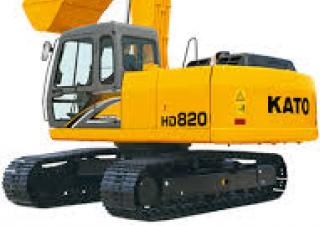

Kato HD820III is a Crawler Excavator manufactured since 2005. It has a weight of 19 tons and a track width of 600 mm. The transpor…

Kato HD820III is a Crawler Excavator manufactured since 2005. It has a weight of 19 tons and a track width of 600 mm. The transport dimensions are 9 meters in length, 2 meters in width, and 2 meters in height. The excavator features a tear-out force of 144 kN, a dredging depth of 7 meters, and a maximum horizontal reach of 10 meters. The bucket width is 1.385 meters with a maximum capacity of 1 cubic meter. Special equipment includes air conditioning, a diesel particulate filter, and track adjustment.

Crawler Excavators Kato HD820III

Technical specs - HD820III Kato

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
19.2 t
Transport length
9.5 m
Transport width
2.82 m
Transport height
2.91 m
Bucket capacity min.
0.45 m³
Bucket capacity max.
1.1 m³
Track width
600 mm
Boom
MB
Max. Reach horizontal
10.81 m
Dredging depth
7.7 m
Tear-out force
144 kN
Bucket width
1.385 m
Engine manuf.
Mitsubishi
Engine type
6D34-TLE2A
Engine power
110 kW
Displacement
5.86 l
Revolutions at max torque
1400 rpm
Max. torque
580 Nm
No. of cylinders
6
Cylinder bore x stroke
104 x 115 mm

More technical details, like: bucket capacity, undercarriage, model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
Yes
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Kato HD820III FAQ

When was the Kato HD820III manufactured?

The Kato HD820III was manufactured from 2005 to 2023.

How much does the Kato HD820III weigh?

The Kato HD820III weighs 19.2 tons.

What are the transport dimensions of the Kato HD820III crawler excavator?

The Kato HD820III has a transport length of 9.5 meters, a transport width of 2.82 meters, and a transport height of 2.91 meters.

What is the track width of the Kato HD820III crawler excavator?

The Kato HD820III crawler excavator has a track width of 600 mm.

What are the excavation performance specifications of the Kato HD820III crawler excavator?

The Kato HD820III crawler excavator has a dredging depth of 7.7 meters, a maximum horizontal reach of 10.81 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Kato HD820III?

The Kato HD820III has a tear-out force of 144 kN.

What are the specifications of the primary work tool bucket on the Kato HD820III?

The Kato HD820III has a bucket with a maximum capacity of 1.1 cubic meters, a minimum capacity of 0.45 cubic meters, and a width of 1.385 meters.
