HD820-7 Kato excavator specs & Dimensions (2017 - 2026)

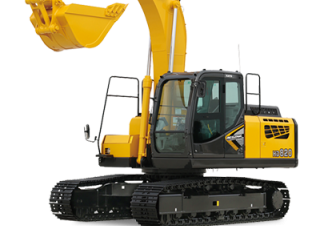

Kato HD820-7 is a Crawler Excavator manufactured since 2017. It has a weight of 21 tons and a track width of 600 mm. The transport…

Kato HD820-7 is a Crawler Excavator manufactured since 2017. It has a weight of 21 tons and a track width of 600 mm. The transport dimensions are 9.57 meters in length, 2.82 meters in width, and 2.95 meters in height. The excavator features a tear-out force of 159 kN, a dredging depth of 6.7 meters, and a maximum horizontal reach of 9.93 meters. The bucket width is 1.13 meters with a capacity of 0.8 cubic meters. It is equipped with air conditioning.

Crawler Excavators Kato HD820-7

Technical specs - HD820-7 Kato

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
21 t
Transport length
9.57 m
Transport width
2.82 m
Transport height
2.95 m
Bucket capacity
0.8 m³
Track width
600 mm
Boom
MB
Max. Reach horizontal
9.93 m
Dredging depth
6.7 m
Tear-out force
159 kN
Bucket width
1.13 m
Model series
HD
Engine manuf.
Isuzu
Engine type
4HK1X
Engine power
128.4 kW
Displacement
5.193 l
Revolutions at max torque
1600 rpm
Max. torque
670 Nm
No. of cylinders
4
Cylinder bore x stroke
115x125 mm

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Kato HD820-7 FAQ

When was the Kato HD820-7 manufactured?

The Kato HD820-7 was first produced in 2017.

How much does the Kato HD820-7 weigh?

The Kato HD820-7 weighs 21 tons.

What are the transport dimensions of the Kato HD820-7 crawler excavator?

The Kato HD820-7 has a transport length of 9.57 meters, a transport width of 2.82 meters, and a transport height of 2.95 meters.

What is the track width of the Kato HD820-7's undercarriage?

The Kato HD820-7 has a track width of 600 mm.

What are the excavation performance specifications of the Kato HD820-7?

The Kato HD820-7 has a dredging depth of 6.7 meters, a maximum horizontal reach of 9.93 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Kato HD820-7?

The Kato HD820-7 has a tear-out force of 159 kN. No power ratings are provided in the source data.

What are the specifications of the primary work tool bucket on the Kato HD820-7?

The primary work tool bucket of the Kato HD820-7 has a capacity of 0.8 cubic meters and a width of 1.13 meters.
