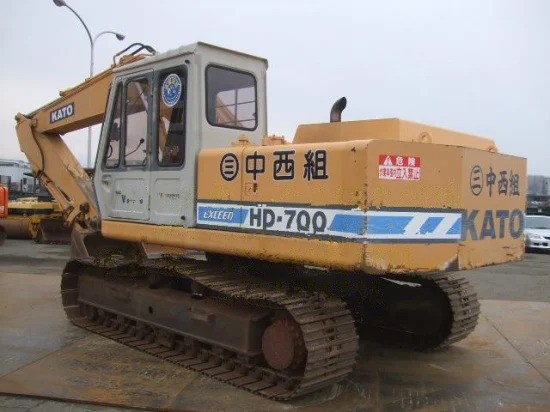

HD700SELV Kato excavator specs & Dimensions (1987 - 2023)

Kato HD700SELV is a crawler excavator manufactured since 1987. It has a weight of 19 tons and a track width of 600 mm. The transpo…

Kato HD700SELV is a crawler excavator manufactured since 1987. It has a weight of 19 tons and a track width of 600 mm. The transport dimensions are 9 meters in length, 2 meters in width, and 2 meters in height. The excavator features a tear-out force of 110 kN, a dredging depth of 6 meters, and a maximum horizontal reach of 9 meters. The maximum bucket capacity is 1 cubic meter.

Crawler Excavators Kato HD700SELV

Technical specs - HD700SELV Kato

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
19 t
Transport length
9.5 m
Transport width
2.99 m
Transport height
2.91 m
Bucket capacity min.
0.4 m³
Bucket capacity max.
1.2 m³
Track width
600 mm
Boom
MB
Max. Reach horizontal
9.97 m
Dredging depth
6.62 m
Tear-out force
110.82 kN
Engine manuf.
Mitsubishi
Engine type
6D31-T
Engine power
91.7 kW
Displacement
4.948 l
Revolutions at max torque
1700 rpm
Max. torque
431.2 Nm

More technical details, like: bucket capacity, undercarriage, bucket width, model series, dimension lxwxh, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Kato HD700SELV FAQ

When was the Kato HD700SELV manufactured?

The Kato HD700SELV was manufactured from 1987 to 2023.

How much does the Kato HD700SELV weigh?

The Kato HD700SELV weighs 19 tons.

What are the transport dimensions of the Kato HD700SELV crawler excavator?

The Kato HD700SELV has a transport length of 9.5 meters, a transport width of 2.99 meters, and a transport height of 2.91 meters.

What is the track width of the Kato HD700SELV crawler excavator?

The Kato HD700SELV crawler excavator has a track width of 600 mm.

What are the excavation performance specifications of the Kato HD700SELV?

The Kato HD700SELV has a dredging depth of 6.62 meters, a maximum horizontal reach of 9.97 meters, and features a monobloc boom.

What is the tear-out force of the Kato HD700SELV?

The Kato HD700SELV has a tear-out force of 110.82 kN.

What are the bucket capacity specifications of the Kato HD700SELV crawler excavator?

The Kato HD700SELV crawler excavator has a bucket capacity ranging from 0.4 to 1.2 cubic meters.
