HD307 Special Kato excavator specs & Dimensions (2001 - 2023)

Kato HD307 Special is a crawler excavator manufactured since 2001, with a weight of 6.4 tons. It features a track width of 450 mm …

Kato HD307 Special is a crawler excavator manufactured since 2001, with a weight of 6.4 tons. It features a track width of 450 mm and has transport dimensions of 6 meters in length, 2 meters in width, and 2 meters in height. The maximum horizontal reach of the excavator is 7 meters.

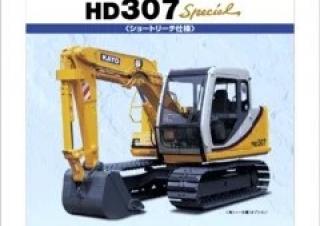

Crawler Excavators Kato HD307 Special

Technical specs - HD307 Special Kato

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
6.4 t
Transport length
6 m
Transport width
2 m
Transport height
2 m
Track width
450 mm
Boom
MB
Max. Reach horizontal
7 m
Dredging depth
4.71 m
Tear-out force
57.86 kN
Bucket width
0.89 m
Engine manuf.
Isuzu
Engine type
A-4JB1
Engine power
42 kW
Displacement
2.771 l
Revolutions at max torque
1800 rpm
Max. torque
188 Nm
No. of cylinders
4
Cylinder bore x stroke
93 x 102 mm

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Kato HD307 Special FAQ

When was the Kato HD307 Special manufactured?

The Kato HD307 Special was manufactured from 2001 to 2023.

How much does the Kato HD307 Special weigh?

The Kato HD307 Special weighs 6.4 tons.

What are the transport dimensions of the Kato HD307 Special?

The Kato HD307 Special has a transport length of 6 meters, a transport width of 2 meters, and a transport height of 2 meters.

What is the track width of the Kato HD307 Special's undercarriage?

The Kato HD307 Special has a track width of 450 mm.

What are the excavation performance specifications of the Kato HD307 Special?

The Kato HD307 Special has a dredging depth of 4.71 meters, a maximum horizontal reach of 7 meters, and features a monobloc boom.

What are the power ratings of the Kato HD307 Special?

The source data does not provide power ratings for the Kato HD307 Special.

What is the bucket width of the Kato HD307 Special excavator?

The bucket width of the Kato HD307 Special excavator is 0.89 meters.

How much is a Kato HD307 Special Crawler excavator (2001u20132023) worth?

The residual value of the Kato HD307 Special depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
