HD1023III Kato excavator specs & Dimensions (2003 - 2023)

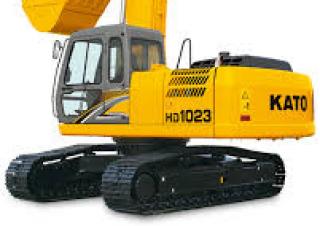

Kato HD1023III is a crawler excavator manufactured since 2003. It has a weight of 23 tons and a track width of 600 mm. The transpo…

Kato HD1023III is a crawler excavator manufactured since 2003. It has a weight of 23 tons and a track width of 600 mm. The transport dimensions are 9 meters in length, 2 meters in width, and 3 meters in height. The machine features a tear-out force of 174 kN, a dredging depth of 8 meters, and a maximum horizontal reach of 11 meters. The bucket width is 1.515 meters, with a maximum bucket capacity of 1 cubic meter.

Crawler Excavators Kato HD1023III

Technical specs - HD1023III Kato

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
23 t
Transport length
9.97 m
Transport width
2.99 m
Transport height
3.12 m
Bucket capacity min.
0.55 m³
Bucket capacity max.
1.5 m³
Track width
600 mm
Boom
MB
Max. Reach horizontal
11.26 m
Dredging depth
8.01 m
Tear-out force
174.6 kN
Bucket width
1.515 m
Engine manuf.
Mitsubishi
Engine type
6D34-TLE2A
Engine power
125 kW
Displacement
5.86 l
Revolutions at max torque
1600 rpm
Max. torque
620 Nm
No. of cylinders
6
Cylinder bore x stroke
104 x 115 mm

More technical details, like: bucket capacity, undercarriage, model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Kato HD1023III FAQ

When was the Kato HD1023III manufactured?

The Kato HD1023III was manufactured from 2003 to 2023.

How much does the Kato HD1023III weigh?

The Kato HD1023III weighs 23 tons.

What are the transport dimensions of the Kato HD1023III crawler excavator?

The Kato HD1023III has a transport length of 9.97 meters, a transport width of 2.99 meters, and a transport height of 3.12 meters.

What is the track width of the Kato HD1023III crawler excavator?

The Kato HD1023III crawler excavator has a track width of 600 mm.

What are the excavation performance specifications of the Kato HD1023III?

The Kato HD1023III has a dredging depth of 8.01 meters, a maximum horizontal reach of 11.26 meters, and features a Monobloc boom.

What is the tear-out force of the Kato HD1023III, and is there any power rating data available?

The Kato HD1023III has a tear-out force of 174.6 kN. However, no power rating data is provided for this machine in the available information.

What are the bucket specifications of the Kato HD1023III crawler excavator?

The Kato HD1023III has a bucket with a maximum capacity of 1.5 cubic meters, a minimum capacity of 0.55 cubic meters, and a width of 1.515 meters.
