HD1023 Kato excavator specs & Dimensions (1994 - 2023)

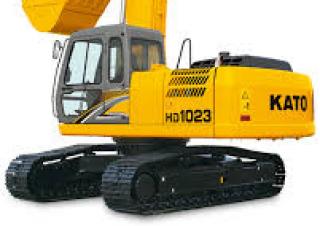

Kato HD1023 is a Crawler Excavator manufactured since 1994. It has a weight of 23 tons and a track width of 600 mm. The transport …

Kato HD1023 is a Crawler Excavator manufactured since 1994. It has a weight of 23 tons and a track width of 600 mm. The transport dimensions are 10 meters in length, 2 meters in width, and 3 meters in height. The excavator features a tear-out force of 174 kN, a dredging depth of 11 meters, and a maximum horizontal reach of 11 meters. The bucket width is 1.515 meters with a maximum bucket capacity of 1 cubic meter.

Crawler Excavators Kato HD1023

Technical specs - HD1023 Kato

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
23 t
Transport length
10.08 m
Transport width
2.99 m
Transport height
3.12 m
Bucket capacity min.
0.5 m³
Bucket capacity max.
1.5 m³
Track width
600 mm
Boom
MB
Max. Reach horizontal
11.26 m
Dredging depth
11.1 m
Tear-out force
174.6 kN
Bucket width
1.515 m
Engine manuf.
Mitsubishi
Engine type
6D16-TE1
Engine power
125 kW
Displacement
7.545 l
Revolutions at max torque
1600 rpm
Max. torque
637 Nm
No. of cylinders
6
Cylinder bore x stroke
118 x 115 mm

More technical details, like: bucket capacity, undercarriage, model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Kato HD1023 FAQ

When was the Kato HD1023 manufactured?

The Kato HD1023 was manufactured from 1994 to 2023.

How much does the Kato HD1023 weigh?

The Kato HD1023 weighs 23 tons.

What are the transport dimensions of the Kato HD1023 crawler excavator?

The Kato HD1023 has a transport length of 10.08 meters, a transport width of 2.99 meters, and a transport height of 3.12 meters.

What is the track width of the Kato HD1023's undercarriage?

The Kato HD1023 has a track width of 600 mm.

What are the excavation performance specifications of the Kato HD1023?

The Kato HD1023 has a dredging depth of 11.1 meters, a maximum horizontal reach of 11.26 meters, and is equipped with a monobloc boom.

What is the power rating of the Kato HD1023?

The source data does not provide a power rating for the Kato HD1023.

What are the bucket specifications of the Kato HD1023 crawler excavator?

The Kato HD1023 crawler excavator has a bucket width of 1.515 meters, with a bucket capacity ranging from 0.5 to 1.5 cubic meters.

How much is a Kato HD1023 Crawler excavator (1994u20132023) worth?

The residual value of the Kato HD1023 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
