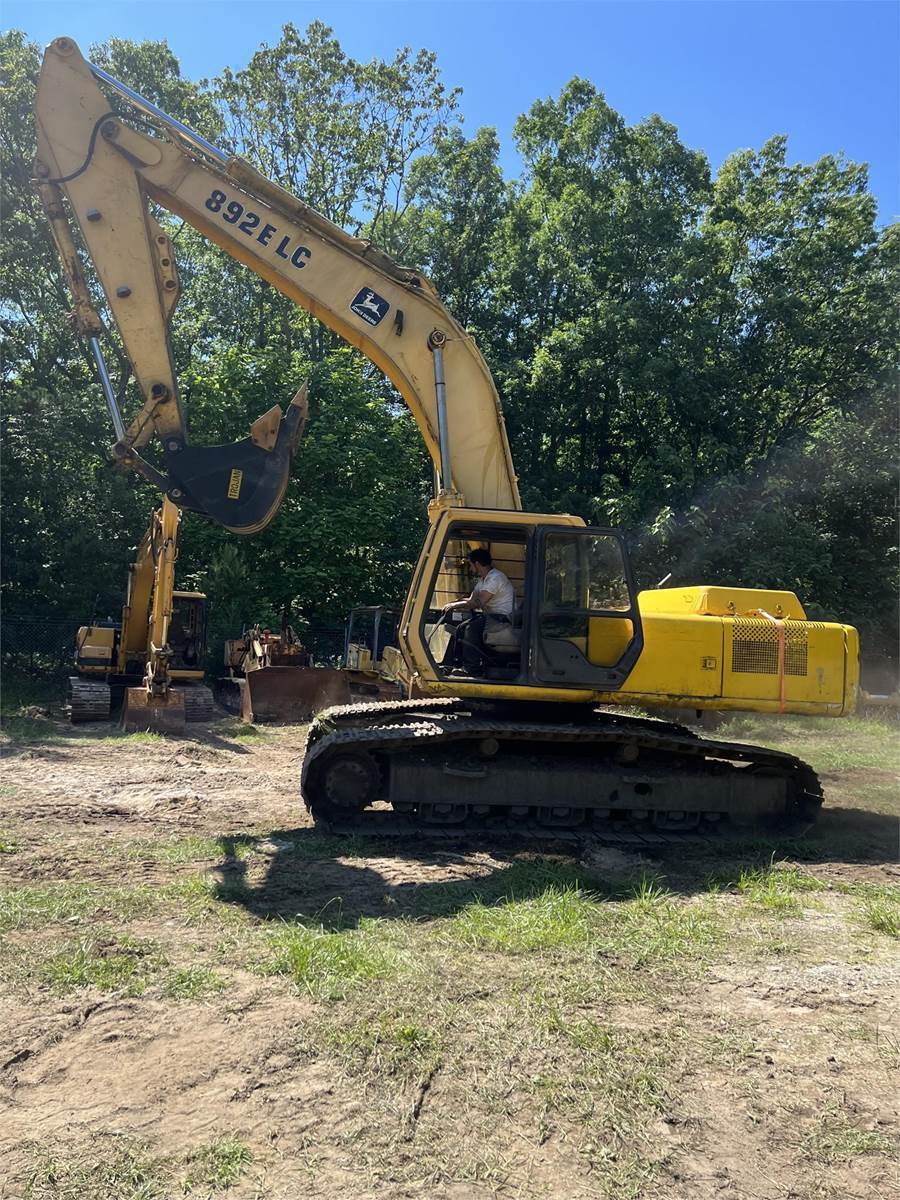

892E John Deere Construction excavator specs & Dimensions (1974 - 2021)

John Deere Construction 892E is a Crawler Excavator with a weight of 29.5 tons and a track width of 600 mm. It has a transport len…

John Deere Construction 892E is a Crawler Excavator with a weight of 29.5 tons and a track width of 600 mm. It has a transport length of 14.43 meters, a transport width of 3.01 meters, and a transport height of 3.3 meters. The machine features a tear-out force of 57.8 kN, a dredging depth of 13.77 meters, and a maximum horizontal reach of 18.25 meters. Special equipment includes a blade and track adjustment.

Crawler Excavators John Deere Construction 892E

Technical specs - 892E John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
29.5 t
Transport length
14.43 m
Transport width
3.01 m
Transport height
3.3 m
Track width
600 mm
Max. Reach horizontal
18.25 m
Dredging depth
13.77 m
Tear-out force
57.8 kN
Model series
E
Engine manuf.
John Deere
Engine type
6076A
Engine power
164 kW
Displacement
7.63 l
Max. torque
881 Nm
No. of cylinders
6

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, dimension lxwxh, revolutions at max torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
Yes
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

John Deere Construction 892E FAQ

When was the John Deere Construction 892E manufactured?

The John Deere Construction 892E was manufactured from 1974 to 2021.

How much does the John Deere Construction 892E weigh?

The John Deere Construction 892E weighs 29.5 tons.

What are the transport dimensions of the John Deere Construction 892E?

The John Deere Construction 892E has a transport length of 14.43 meters, a transport width of 3.01 meters, and a transport height of 3.3 meters.

What is the track width of the John Deere Construction 892E's undercarriage?

The John Deere Construction 892E has a track width of 600 mm.

What is the excavation performance of the John Deere Construction 892E?

The John Deere Construction 892E has a dredging depth of 13.77 meters and a maximum horizontal reach of 18.25 meters.

What is the tear-out force of the John Deere Construction 892E?

The John Deere Construction 892E has a tear-out force of 57.8 kN.

How much is a John Deere Construction 892E Crawler excavator (1974u20132021) worth?

The residual value of the John Deere Construction 892E depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
