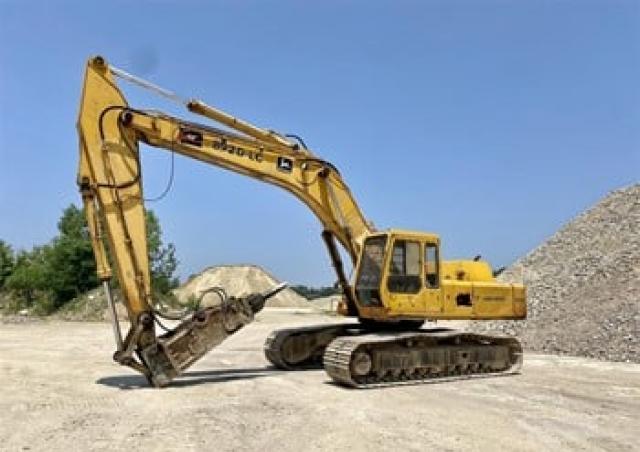

892D John Deere Construction excavator specs & Dimensions (1988 - 2021)

John Deere Construction 892D is a crawler excavator manufactured from 1988 to 2021. It has a weight of 30.5 tons and a track width…

John Deere Construction 892D is a crawler excavator manufactured from 1988 to 2021. It has a weight of 30.5 tons and a track width of 600 mm. The transport dimensions are 11.03 meters in length, 2.59 meters in width, and 2.99 meters in height. The dredging depth is 8.18 meters, and the maximum horizontal reach is 11.6 meters. Special equipment includes a blade and track adjustment.

Crawler Excavators John Deere Construction 892D

Technical specs - 892D John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
30.5 t
Transport length
11.03 m
Transport width
2.59 m
Transport height
2.99 m
Track width
600 mm
Max. Reach horizontal
11.6 m
Dredging depth
8.18 m
Model series
D
Engine manuf.
John Deere
Engine type
6466A
Engine power
145 kW
Displacement
7.63 l
Max. torque
827 Nm
No. of cylinders
6

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, tear-out force, bucket width, dimension lxwxh, revolutions at max torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
Yes
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

John Deere Construction 892D FAQ

When was the John Deere Construction 892D manufactured?

The John Deere Construction 892D was manufactured from 1988 to 2021.

How much does the John Deere Construction 892D weigh?

The John Deere Construction 892D weighs 30.5 tons.

What are the transport dimensions of the John Deere Construction 892D?

The John Deere Construction 892D has a transport length of 11.03 meters, a transport width of 2.59 meters, and a transport height of 2.99 meters.

What is the track width of the John Deere Construction 892D crawler excavator?

The John Deere Construction 892D crawler excavator has a track width of 600 mm.

What are the dredging depth and maximum horizontal reach of the John Deere Construction 892D?

The John Deere Construction 892D has a dredging depth of 8.18 meters and a maximum horizontal reach of 11.6 meters.
