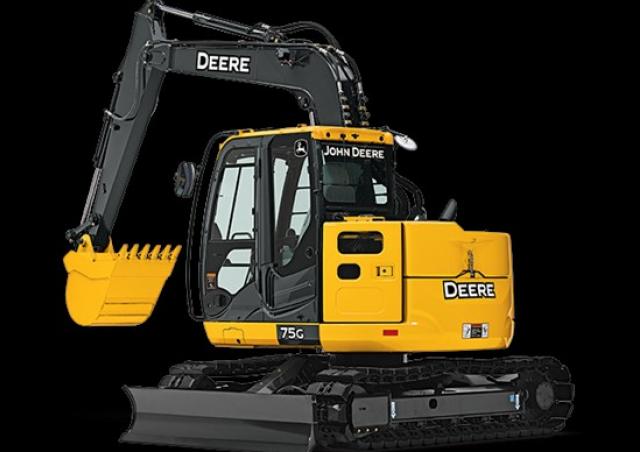

75G John Deere Construction excavator specs & Dimensions (2010 - 2026)

John Deere Construction 75G is a crawler excavator manufactured since 2010. It has a weight of 8.14 tons and a track width of 600 …

John Deere Construction 75G is a crawler excavator manufactured since 2010. It has a weight of 8.14 tons and a track width of 600 mm. The transport dimensions are 6.3 meters in length, 2.47 meters in width, and 2.69 meters in height. The machine features a tear-out force of 46.6 kN, a dredging depth of 4.61 meters, and a maximum horizontal reach of 6.26 meters. Special equipment includes a blade and track adjustment.

Crawler Excavators John Deere Construction 75G

Technical specs - 75G John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.14 t
Transport length
6.3 m
Transport width
2.47 m
Transport height
2.69 m
Track width
600 mm
Max. Reach horizontal
6.26 m
Dredging depth
4.61 m
Tear-out force
46.6 kN
Model series
G
Engine manuf.
Yanmar
Engine type
4TNV98C
Engine power
42 kW
Displacement
3.3 l
No. of cylinders
4
Emission level
Tier4

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
Yes
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

John Deere Construction 75G FAQ

When was the John Deere Construction 75G manufactured?

The John Deere Construction 75G was first produced in 2010.

How much does the John Deere Construction 75G weigh?

The John Deere Construction 75G weighs 8.14 tons.

What are the transport dimensions of the John Deere Construction 75G crawler excavator?

The John Deere Construction 75G has a transport length of 6.3 meters, a transport width of 2.47 meters, and a transport height of 2.69 meters.

What is the track width of the John Deere Construction 75G crawler excavator?

The John Deere Construction 75G crawler excavator has a track width of 600 mm.

What are the dredging depth and maximum horizontal reach of the John Deere Construction 75G?

The John Deere Construction 75G has a dredging depth of 4.61 meters and a maximum horizontal reach of 6.26 meters.

What is the tear-out force of the John Deere Construction 75G?

The John Deere Construction 75G has a tear-out force of 46.6 kN.
