690B John Deere Construction excavator specs & Dimensions (1979 - 1984)

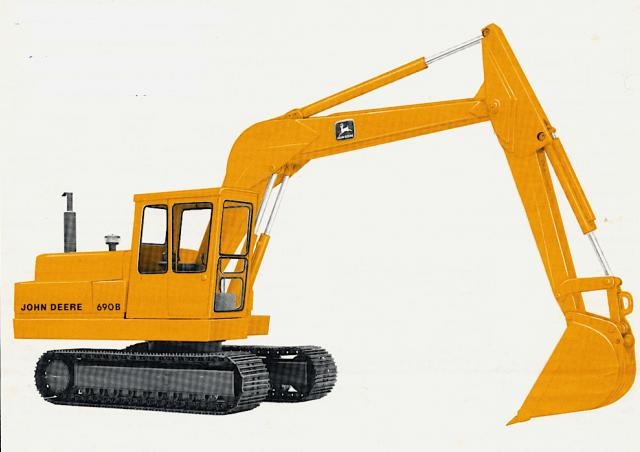

John Deere Construction 690B is a crawler excavator manufactured from 1979 to 1984. It has a weight of 7.3 tons and a track width …

John Deere Construction 690B is a crawler excavator manufactured from 1979 to 1984. It has a weight of 7.3 tons and a track width of 600 mm. The transport dimensions are 8.99 meters in length, 2.42 meters in width, and 2.99 meters in height. The dredging depth is 6.4 meters, and the maximum horizontal reach is 9.14 meters. Special equipment includes a blade and track adjustment.

Crawler Excavators John Deere Construction 690B
Crawler Excavators John Deere Construction 690B
Crawler Excavators John Deere Construction 690B
Crawler Excavators John Deere Construction 690B

Technical specs - 690B John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
17.3 t
Transport length
8.99 m
Transport width
2.42 m
Transport height
2.99 m
Track width
600 mm
Max. Reach horizontal
9.14 m
Dredging depth
6.4 m
Model series
B
Engine manuf.
John Deere
Engine type
N/A
Engine power
97 kW
Displacement
6.62 l
Max. torque
510 Nm
No. of cylinders
6

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, tear-out force, bucket width, dimension lxwxh, revolutions at max torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
Yes
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

John Deere Construction 690B FAQ

When was the John Deere Construction 690B manufactured?

The John Deere Construction 690B was manufactured from 1979 to 1984.

How much does the John Deere Construction 690B weigh?

The John Deere Construction 690B weighs 17.3 tons.

What are the transport dimensions of the John Deere Construction 690B?

The John Deere Construction 690B has a transport length of 8.99 meters, a transport width of 2.42 meters, and a transport height of 2.99 meters.

What is the track width of the John Deere Construction 690B's undercarriage?

The John Deere Construction 690B has a track width of 600 mm.

What are the excavation performance specifications of the John Deere Construction 690B?

The John Deere Construction 690B has a dredging depth of 6.4 meters and a maximum horizontal reach of 9.14 meters.

How much is a John Deere Construction 690B Crawler excavator (1979u20131984) worth?

The residual value of the John Deere Construction 690B depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
