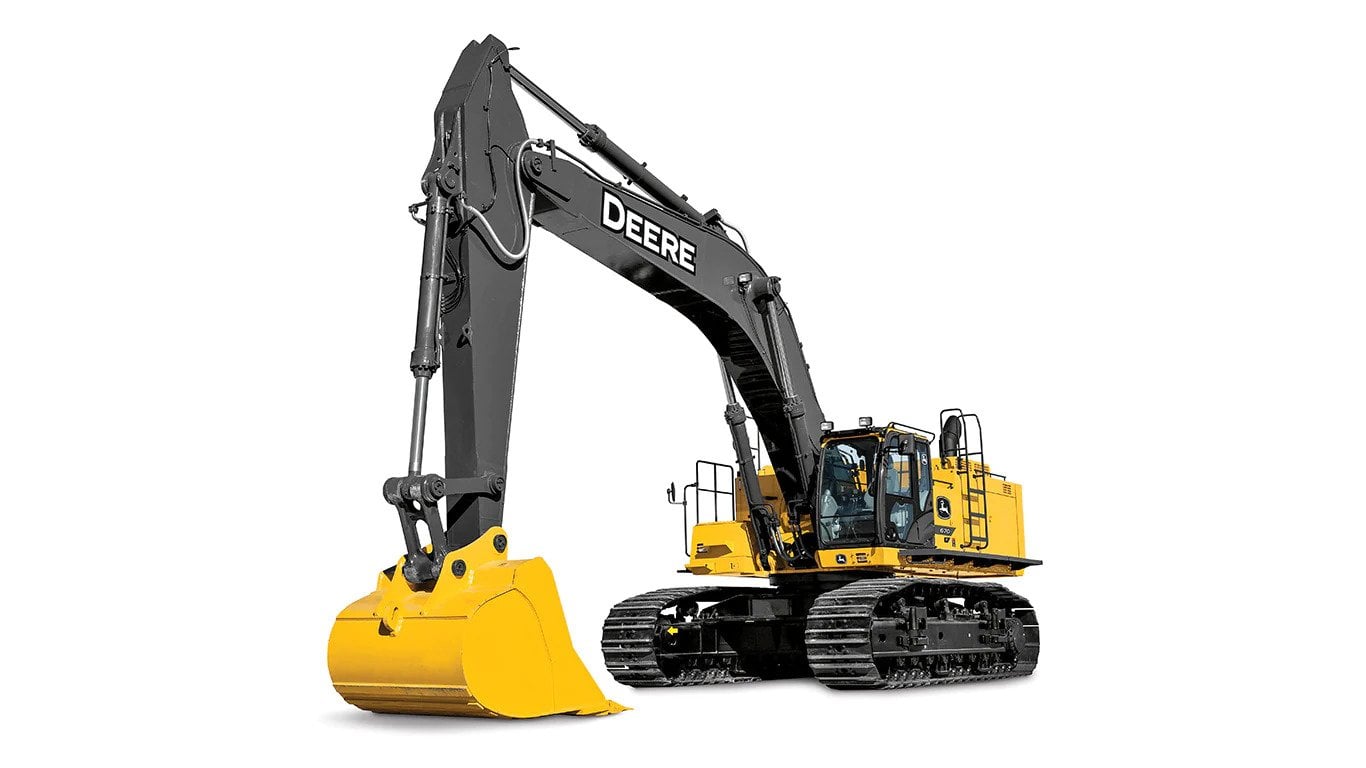

670 P John Deere Construction excavator specs & Dimensions (2022 - 2026)

John Deere Construction 670 P is a Crawler Excavator manufactured since 2022. It has a weight of 69.9 tons and a track width of 90…

John Deere Construction 670 P is a Crawler Excavator manufactured since 2022. It has a weight of 69.9 tons and a track width of 900 mm. The transport dimensions are 13.4 meters in length, 4.02 meters in width, and 4.98 meters in height. The excavator features a tear-out force of 290 kN, a dredging depth of 9.15 meters, and a maximum horizontal reach of 13.85 meters. The bucket width is 1.555 meters, with a capacity ranging from 1.7 m³ to 5.8 m³. Special equipment includes air conditioning, a diesel particulate filter, an overload alert, and track adjustment.

Crawler Excavators John Deere Construction 670 P

Technical specs - 670 P John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
69.9 t
Transport length
13.4 m
Transport width
4.02 m
Transport height
4.98 m
Bucket capacity min.
1.7 m³
Bucket capacity max.
5.8 m³
Track width
900 mm
Max. Reach horizontal
13.85 m
Dredging depth
9.15 m
Tear-out force
290 kN
Bucket width
1.555 m
Model series
P
Engine manuf.
Isuzu
Engine type
6WG1-FT4
Engine power
345 kW
Displacement
15.7 l
Revolutions at max torque
1800 rpm
No. of cylinders
6
Emission level
Tier 4 / Stage IV

More technical details, like: bucket capacity, undercarriage, boom, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
Yes
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

John Deere Construction 670 P FAQ

When was the John Deere Construction 670 P manufactured?

The John Deere Construction 670 P was first produced in 2022.

How much does the John Deere Construction 670 P weigh?

The John Deere Construction 670 P weighs 69.9 tons.

What are the transport dimensions of the John Deere Construction 670 P?

The John Deere Construction 670 P has a transport length of 13.4 meters, a transport width of 4.02 meters, and a transport height of 4.98 meters.

What is the track width of the John Deere Construction 670 P's undercarriage?

The John Deere Construction 670 P has a track width of 900 mm.

What are the dredging depth and maximum horizontal reach of the John Deere Construction 670 P?

The John Deere Construction 670 P has a dredging depth of 9.15 meters and a maximum horizontal reach of 13.85 meters.

What are the power ratings of the John Deere Construction 670 P?

The source data does not provide power rating information for the John Deere Construction 670 P.

What are the bucket specifications of the John Deere Construction 670 P crawler excavator?

The John Deere Construction 670 P crawler excavator has a bucket with a maximum capacity of 5.8 cubic meters, a minimum capacity of 1.7 cubic meters, and a width of 1.555 meters.

How much is a John Deere Construction 670 P Crawler excavator (2022u20132025) worth?

The residual value of the John Deere Construction 670 P depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
