470 P John Deere Construction excavator specs & Dimensions (2022 - 2026)

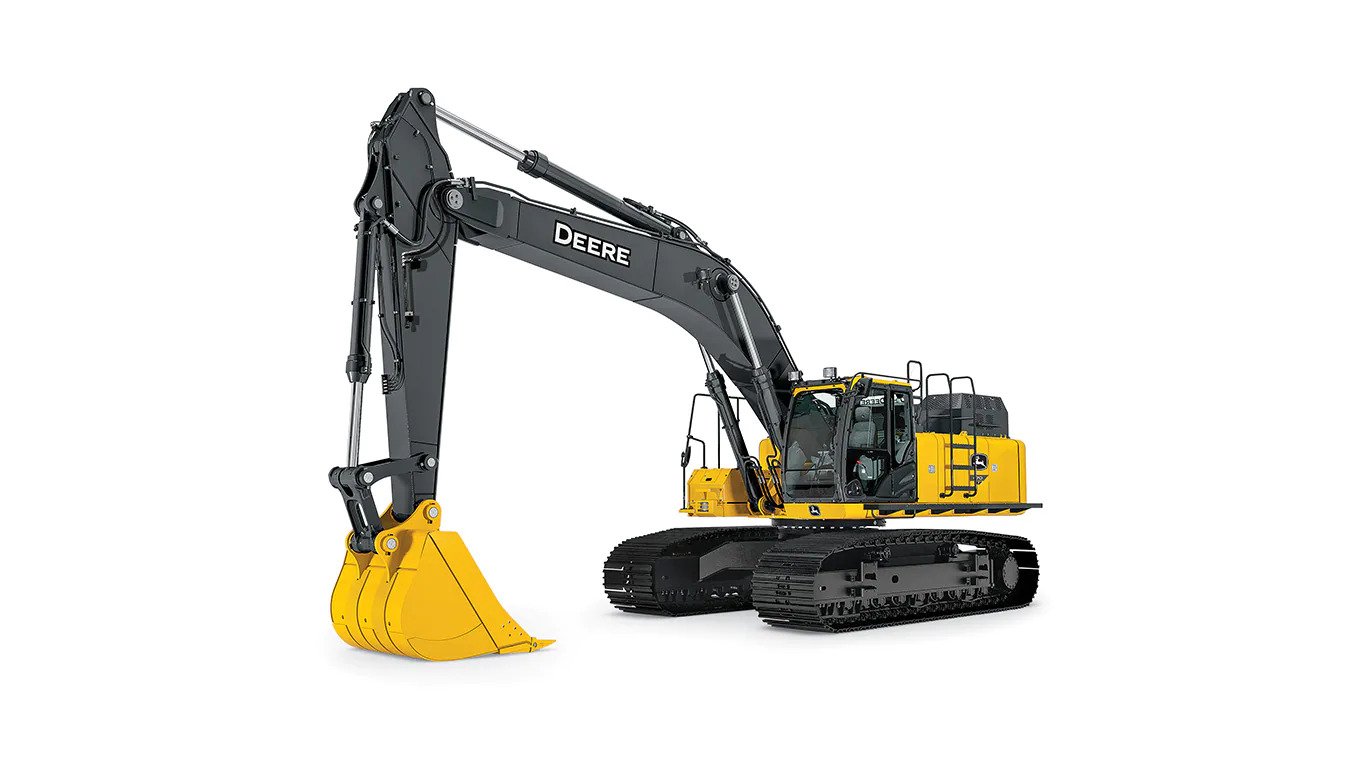

John Deere Construction 470 P is a Crawler Excavator manufactured since 2022. It has a weight of 51.218 tons and a track width of …

John Deere Construction 470 P is a Crawler Excavator manufactured since 2022. It has a weight of 51.218 tons and a track width of 900 mm. The transport dimensions are 12.01 m in length, 3.29 m in width, and 3.5 m in height. The machine features a tear-out force of 301 kN, a dredging depth of 8.27 m, and a maximum horizontal reach of 12.49 m. The bucket width is 1.537 m, with a capacity ranging from 1.7 m³ to 3.9 m³. Special equipment includes air conditioning, a diesel particulate filter, an overload alert, and track adjustment.

Crawler Excavators John Deere Construction 470 P

Technical specs - 470 P John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
51.218 t
Transport length
12.01 m
Transport width
3.29 m
Transport height
3.5 m
Bucket capacity min.
1.7 m³
Bucket capacity max.
3.9 m³
Track width
900 mm
Max. Reach horizontal
12.49 m
Dredging depth
8.27 m
Tear-out force
301 kN
Bucket width
1.537 m
Model series
P
Engine manuf.
John Deere
Engine type
PSS 6135
Engine power
274 kW
Displacement
13.5 l
Revolutions at max torque
2000 rpm
No. of cylinders
6
Emission level
Tier 4 / Stage V

More technical details, like: bucket capacity, undercarriage, boom, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
Yes
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

John Deere Construction 470 P FAQ

When was the John Deere Construction 470 P manufactured?

The John Deere Construction 470 P was first produced in 2022.

How much does the John Deere Construction 470 P weigh?

The John Deere Construction 470 P weighs 51.22 tons.

What are the transport dimensions of the John Deere Construction 470 P?

The John Deere Construction 470 P has a transport length of 12.01 meters, a transport width of 3.29 meters, and a transport height of 3.5 meters.

What is the track width of the John Deere Construction 470 P's undercarriage?

The John Deere Construction 470 P has a track width of 900 mm.

What is the excavation performance of the John Deere Construction 470 P?

The John Deere Construction 470 P has a dredging depth of 8.27 meters and a maximum horizontal reach of 12.49 meters.

What is the tear-out force of the John Deere Construction 470 P?

The John Deere Construction 470 P has a tear-out force of 301 kN.

What are the specifications of the primary work tool bucket on the John Deere Construction 470 P?

The John Deere Construction 470 P has a bucket with a maximum capacity of 3.9 mu00b3, a minimum capacity of 1.7 mu00b3, and a width of 1.537 meters.

How much is a John Deere Construction 470 P Crawler excavator (2022u20132025) worth?

The residual value of the John Deere Construction 470 P depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

John Deere Construction 470 P overview

John Deere Construction 470 P features overview

Pivotal development

Bucket-to-arm pivot joint features a new heat-treated pin and flanged bushing made of forged steel, to double joint life in sandy digging conditions. High-strength floating-pin design extends pin-case hardening depth by 175 percent, boosting wear life and easing serviceability.


Upper Structure

Stress management

Thick-plate single-sheet mainframe, box-section track frames, and double-seal swing bearing deliver rock-solid durability. Three welded bulkheads within the boom resist torsional stress.


Cab

Take control

Ergonomically correct short-throw pilot levers provide smooth, predictable fingertip control with less movement or effort. Grade-control functions are integrated into the factory pilot levers for easy operation.


Equipment

Buckets

A full line of buckets is offered to meet a wide variety of applications. Digging forces are enhanced with power boost. Buckets are equipped with John Deere TK-Series teeth, and a variety of teeth are available through John Deere Parts. Additionally, optional side cutters add 150 mm (6 in.) to bucket widths, and capacities are based on SAE heaped ratings.
