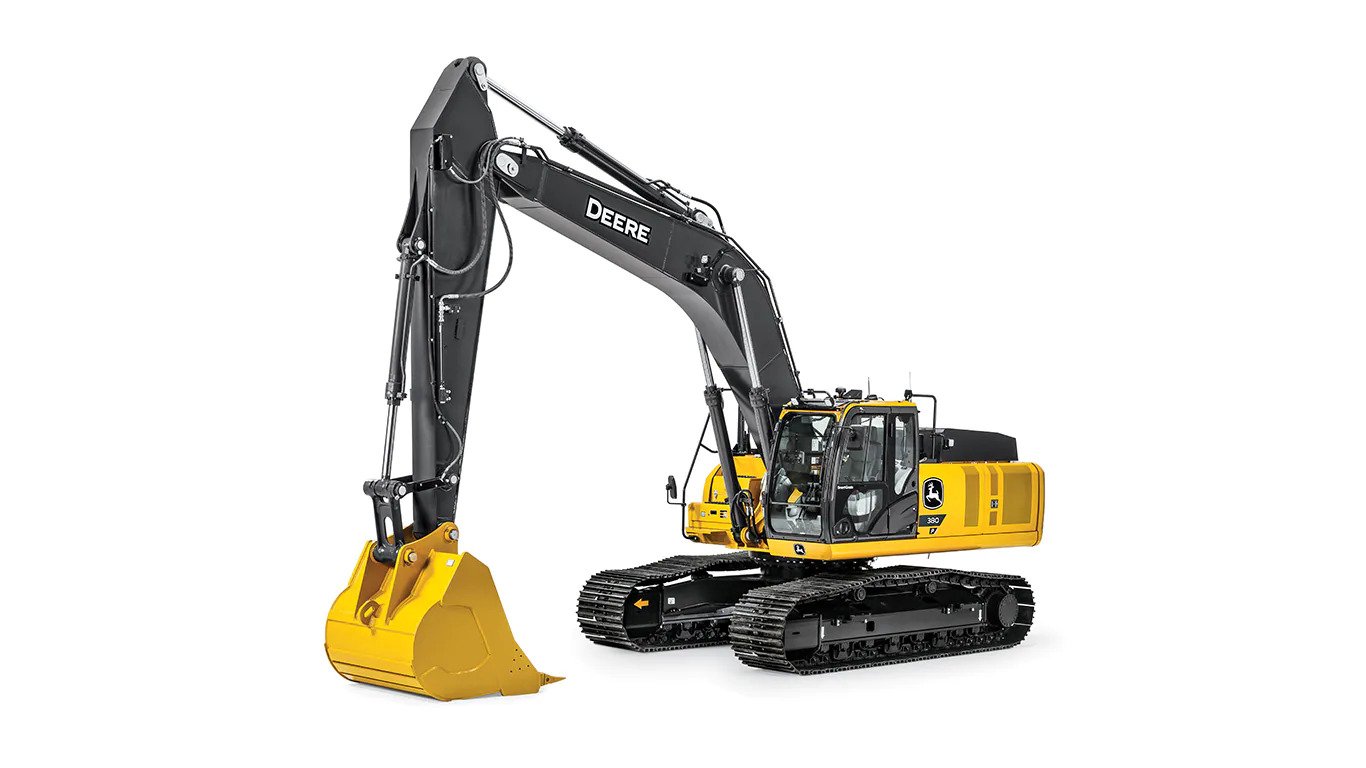

380 P John Deere Construction excavator specs & Dimensions (2022 - 2026)

John Deere Construction 380 P is a Crawler Excavator manufactured since 2022. It has a weight of 38.765 tons and a track width of …

John Deere Construction 380 P is a Crawler Excavator manufactured since 2022. It has a weight of 38.765 tons and a track width of 800 mm. The transport dimensions are 11.2 meters in length, 3.39 meters in width, and 3.27 meters in height. The machine features a tear-out force of 246 kN, a dredging depth of 8.18 meters, and a maximum horizontal reach of 11.86 meters. The bucket width is 1.372 meters, with a capacity ranging from 1.25 m³ to 3.4 m³. Special equipment includes air conditioning, a diesel particulate filter, an overload alert, and track adjustment.

Crawler Excavators John Deere Construction 380 P

Technical specs - 380 P John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
38.765 t
Transport length
11.2 m
Transport width
3.39 m
Transport height
3.27 m
Bucket capacity min.
1.25 m³
Bucket capacity max.
3.4 m³
Track width
800 mm
Max. Reach horizontal
11.86 m
Dredging depth
8.18 m
Tear-out force
246 kN
Bucket width
1.372 m
Model series
P
Engine manuf.
John Deere
Engine type
PSS 9.0 L
Engine power
202 kW
Displacement
9 l
Revolutions at max torque
1900 rpm
No. of cylinders
6
Emission level
Tier 4 / Stage V

More technical details, like: bucket capacity, undercarriage, boom, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
Yes
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

John Deere Construction 380 P FAQ

When was the John Deere Construction 380 P manufactured?

The John Deere Construction 380 P was first produced in 2022.

How much does the John Deere Construction 380 P weigh?

The John Deere Construction 380 P weighs 38.77 tons.

What are the transport dimensions of the John Deere Construction 380 P crawler excavator?

The John Deere Construction 380 P has a transport length of 11.2 meters, a transport width of 3.39 meters, and a transport height of 3.27 meters.

What is the track width of the John Deere Construction 380 P crawler excavator?

The John Deere Construction 380 P crawler excavator has a track width of 800 mm.

What are the excavation performance specifications of the John Deere Construction 380 P?

The John Deere Construction 380 P has a dredging depth of 8.18 meters and a maximum horizontal reach of 11.86 meters.

What is the tear-out force of the John Deere Construction 380 P?

The John Deere Construction 380 P has a tear-out force of 246 kN.

What are the specifications of the primary work tool bucket on the John Deere Construction 380 P?

The John Deere Construction 380 P's primary work tool bucket has a maximum capacity of 3.4 cubic meters, a minimum capacity of 1.25 cubic meters, and a width of 1.372 meters.
