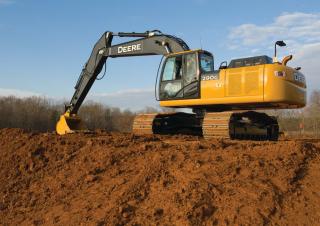

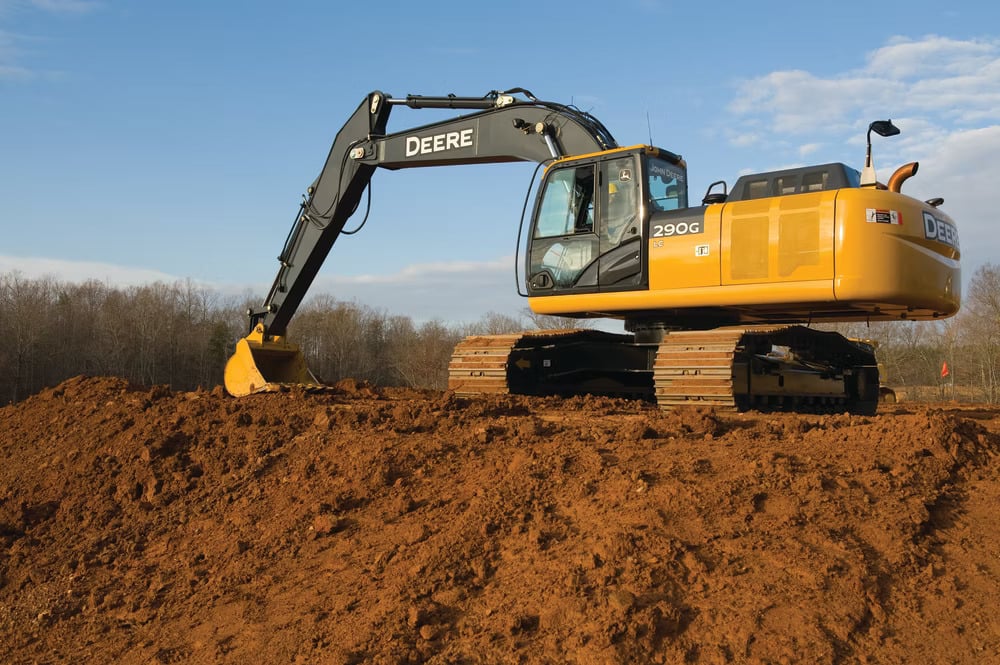

290G John Deere Construction excavator specs & Dimensions (2011 - 2021)

John Deere Construction 290G is a crawler excavator manufactured from 2011 to 2021. It has a weight of 30 tons and a track width o…

John Deere Construction 290G is a crawler excavator manufactured from 2011 to 2021. It has a weight of 30 tons and a track width of 700 mm. The transport dimensions are 10.54 meters in length, 2.59 meters in width, and 3.17 meters in height. The machine features a tear-out force of 175 kN, a dredging depth of 7.23 meters, and a maximum horizontal reach of 10.52 meters. Special equipment includes a blade and track adjustment.

Crawler Excavators John Deere Construction 290G

Technical specs - 290G John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
30 t
Transport length
10.54 m
Transport width
2.59 m
Transport height
3.17 m
Track width
700 mm
Max. Reach horizontal
10.52 m
Dredging depth
7.23 m
Tear-out force
175 kN
Model series
G
Engine manuf.
John Deere
Engine type
6068H
Engine power
140 kW
Displacement
6.8 l
Max. torque
813 Nm
No. of cylinders
6

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, dimension lxwxh, revolutions at max torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
Yes
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

John Deere Construction 290G FAQ

When was the John Deere Construction 290G manufactured?

The John Deere Construction 290G was manufactured from 2011 to 2021.

How much does the John Deere Construction 290G weigh?

The John Deere Construction 290G weighs 30 tons.

What are the transport dimensions of the John Deere Construction 290G?

The John Deere Construction 290G has a transport length of 10.54 meters, a transport width of 2.59 meters, and a transport height of 3.17 meters.

What is the track width of the John Deere Construction 290G crawler excavator?

The John Deere Construction 290G crawler excavator has a track width of 700 mm.

What are the dredging depth and maximum horizontal reach of the John Deere Construction 290G?

The John Deere Construction 290G has a dredging depth of 7.23 meters and a maximum horizontal reach of 10.52 meters.

What is the tear-out force of the John Deere Construction 290G?

The John Deere Construction 290G has a tear-out force of 175 kN.

How much is a John Deere Construction 290G Crawler excavator (2011u20132021) worth?

The residual value of the John Deere Construction 290G depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
