290D John Deere Construction excavator specs & Dimensions (1995 - 2021)

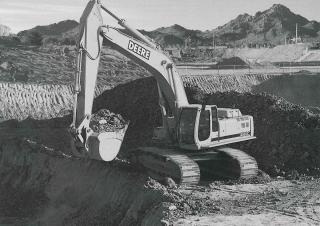

John Deere Construction 290D is a crawler excavator manufactured from 1995 to 2021. It has a weight of 9.4 tons and a track width …

John Deere Construction 290D is a crawler excavator manufactured from 1995 to 2021. It has a weight of 9.4 tons and a track width of 500 mm. The transport dimensions are 6.86 meters in length, 1.85 meters in width, and 2.61 meters in height. The machine features a tear-out force of 56 kN, a dredging depth of 4.6 meters, and a maximum horizontal reach of 6.92 meters. Special equipment includes a blade and track adjustment.

Crawler Excavators John Deere Construction 290D

Technical specs - 290D John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
9.4 t
Transport length
6.86 m
Transport width
1.85 m
Transport height
2.61 m
Track width
500 mm
Max. Reach horizontal
6.92 m
Dredging depth
4.6 m
Tear-out force
56 kN
Model series
D
Engine manuf.
John Deere
Engine type
4-239D
Engine power
48 kW
Displacement
3.91 l
No. of cylinders
4

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
Yes
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

John Deere Construction 290D FAQ

When was the John Deere Construction 290D manufactured?

The John Deere Construction 290D was manufactured from 1995 to 2021.

How much does the John Deere Construction 290D weigh?

The John Deere Construction 290D weighs 9.4 tons.

What are the transport dimensions of the John Deere Construction 290D?

The John Deere Construction 290D has a transport length of 6.86 meters, a transport width of 1.85 meters, and a transport height of 2.61 meters.

What is the track width of the John Deere Construction 290D's undercarriage?

The John Deere Construction 290D has a track width of 500 mm.

What are the excavation performance specifications of the John Deere Construction 290D?

The John Deere Construction 290D has a dredging depth of 4.6 meters and a maximum horizontal reach of 6.92 meters.

What is the tear-out force of the John Deere Construction 290D?

The John Deere Construction 290D has a tear-out force of 56 kN.

How much is a John Deere Construction 290D Crawler excavator (1995u20132021) worth?

The residual value of the John Deere Construction 290D depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
