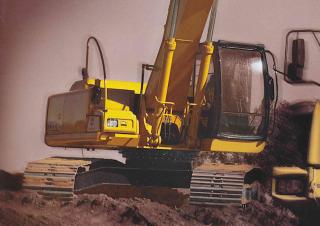

200C John Deere Construction excavator specs & Dimensions (2004 - 2007)

John Deere Construction 200C is a Crawler Excavator manufactured from 2004 to 2007, with a weight of 20.9 tons. It features a trac…

John Deere Construction 200C is a Crawler Excavator manufactured from 2004 to 2007, with a weight of 20.9 tons. It features a track width of 600 mm, a transport length of 9.62 meters, a transport width of 2.59 meters, and a transport height of 3.13 meters. The machine has a tear-out force of 135 kN, a dredging depth of 5.98 meters, and a maximum horizontal reach of 9.08 meters. Special equipment includes a blade and track adjustment.

Crawler Excavators John Deere Construction 200C

Technical specs - 200C John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
20.9 t
Transport length
9.62 m
Transport width
2.59 m
Transport height
3.13 m
Track width
600 mm
Max. Reach horizontal
9.08 m
Dredging depth
5.98 m
Tear-out force
135 kN
Model series
C
Engine manuf.
John Deere
Engine type
6068H
Engine power
105 kW
Displacement
6.8 l
Max. torque
579 Nm
No. of cylinders
6

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, dimension lxwxh, revolutions at max torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
Yes
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

John Deere Construction 200C FAQ

When was the John Deere Construction 200C manufactured?

The John Deere Construction 200C was manufactured from 2004 to 2007.

How much does the John Deere Construction 200C weigh?

The John Deere Construction 200C weighs 20.9 tons.

What are the transport dimensions of the John Deere Construction 200C crawler excavator?

The John Deere Construction 200C has a transport length of 9.62 meters, a transport width of 2.59 meters, and a transport height of 3.13 meters.

What is the track width of the John Deere Construction 200C's undercarriage?

The John Deere Construction 200C has a track width of 600 mm.

What are the excavation performance specifications of the John Deere Construction 200C?

The John Deere Construction 200C has a dredging depth of 5.98 meters and a maximum horizontal reach of 9.08 meters.

What power ratings are available for the John Deere Construction 200C?

The source data does not provide any power ratings for the John Deere Construction 200C.
