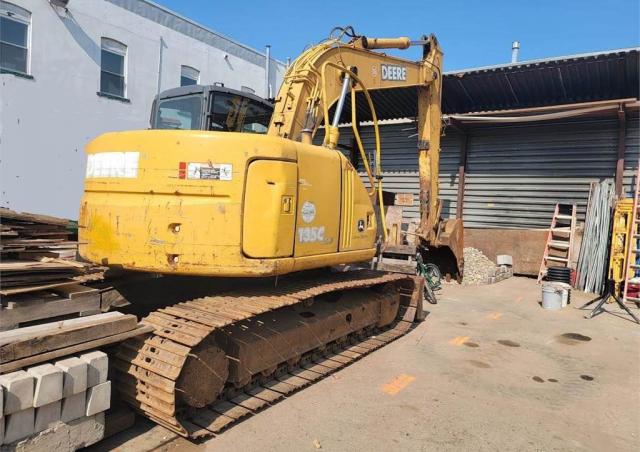

135C John Deere Construction excavator specs & Dimensions (2007 - 2009)

John Deere Construction 135C is a Crawler Excavator manufactured from 2007 to 2009, with a weight of 13.8 tons. It features a trac…

John Deere Construction 135C is a Crawler Excavator manufactured from 2007 to 2009, with a weight of 13.8 tons. It features a track width of 600 mm, a transport length of 7.29 meters, a transport width of 2.84 meters, and a transport height of 2.74 meters. The machine has a tear-out force of 86.3 kN, a dredging depth of 5.53 meters, and a maximum horizontal reach of 8.16 meters. Special equipment includes a blade and track adjustment.

Crawler Excavators John Deere Construction 135C

Technical specs - 135C John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
13.8 t
Transport length
7.29 m
Transport width
2.84 m
Transport height
2.74 m
Track width
600 mm
Max. Reach horizontal
8.16 m
Dredging depth
5.53 m
Tear-out force
86.3 kN
Model series
C
Engine manuf.
Isuzu
Engine type
CC-4BG1TC
Engine power
65 kW
Displacement
4.32 l
No. of cylinders
4

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
Yes
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

John Deere Construction 135C FAQ

When was the John Deere Construction 135C manufactured?

The John Deere Construction 135C was manufactured from 2007 to 2009.

How much does the John Deere Construction 135C weigh?

The John Deere Construction 135C weighs 13.8 tons.

What are the transport dimensions of the John Deere Construction 135C?

The John Deere Construction 135C has a transport length of 7.29 meters, a transport width of 2.84 meters, and a transport height of 2.74 meters.

What is the track width of the John Deere Construction 135C's undercarriage?

The John Deere Construction 135C has a track width of 600 mm on its undercarriage.

What are the dredging depth and maximum horizontal reach of the John Deere Construction 135C?

The John Deere Construction 135C has a dredging depth of 5.53 meters and a maximum horizontal reach of 8.16 meters.

What is the tear-out force of the John Deere Construction 135C?

The John Deere Construction 135C has a tear-out force of 86.3 kN.

How much is a John Deere Construction 135C Crawler excavator (2007u20132009) worth?

The residual value of the John Deere Construction 135C depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
