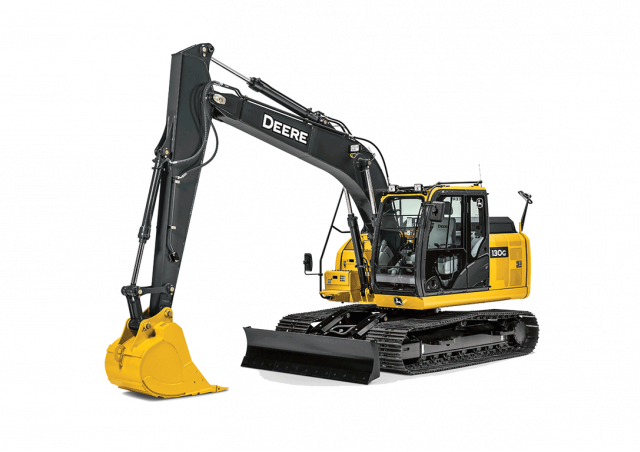

130G John Deere Construction excavator specs & Dimensions (2017 - 2026)

John Deere Construction 130G is a Crawler Excavator manufactured since 2017. It has a weight of 13.17 tons and a track width of 70…

John Deere Construction 130G is a Crawler Excavator manufactured since 2017. It has a weight of 13.17 tons and a track width of 700 mm. The transport dimensions are 7.71 meters in length, 2.69 meters in width, and 2.87 meters in height. The machine features a tear-out force of 96 kN, a dredging depth of 5.54 meters, and a maximum horizontal reach of 8.67 meters. It is equipped with air conditioning as part of its special equipment.

Crawler Excavators John Deere Construction 130G

Technical specs - 130G John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
13.17 t
Transport length
7.71 m
Transport width
2.69 m
Transport height
2.87 m
Undercarriage
SL
Track width
700 mm
Boom
MB
Max. Reach horizontal
8.67 m
Dredging depth
5.54 m
Tear-out force
96 kN
Model series
G
Engine manuf.
John Deere
Engine type
PowerTech PWS 4.5L
Engine power
73 kW
Displacement
4.5 l
Revolutions at max torque
2000 rpm
No. of cylinders
4
Emission level
Tier 4f/EU IV

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

John Deere Construction 130G FAQ

When was the John Deere Construction 130G manufactured?

The John Deere Construction 130G was first produced in 2017.

How much does the John Deere Construction 130G weigh?

The John Deere Construction 130G weighs 13.17 tons.

What are the transport dimensions of the John Deere Construction 130G crawler excavator?

The John Deere Construction 130G has a transport length of 7.71 meters, a transport width of 2.69 meters, and a transport height of 2.87 meters.

What are the undercarriage specifications of the John Deere Construction 130G?

The John Deere Construction 130G has a standard undercarriage with a track width of 700 mm.

What are the excavation performance specifications of the John Deere Construction 130G?

The John Deere Construction 130G has a dredging depth of 5.54 meters, a maximum horizontal reach of 8.67 meters, and features a monobloc boom.

What is the tear-out force of the John Deere Construction 130G?

The John Deere Construction 130G has a tear-out force of 96 kN.

How much is a John Deere Construction 130G Crawler excavator (2017u20132025) worth?

The residual value of the John Deere Construction 130G depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
