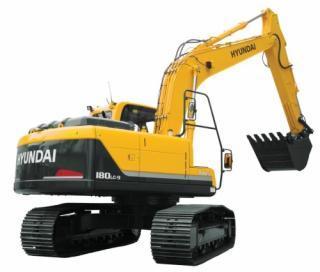

R180LC-9 Hyundai excavator specs & Dimensions (2019 - 2026)

Hyundai R180LC-9 is a Crawler Excavator manufactured since 2019, with a weight of 18.6 t. It features a track width of 600 mm, a t…

Hyundai R180LC-9 is a Crawler Excavator manufactured since 2019, with a weight of 18.6 t. It features a track width of 600 mm, a transport length of 8.65 m, a transport width of 2.85 m, and a transport height of 2.98 m. The excavator has a tear-out force of 107.9 kN, a dredging depth of 6.06 m, and a maximum horizontal reach of 8.86 m. The bucket width is 1.18 m, with a bucket capacity of 0.76 m³. It is equipped with air conditioning as special equipment.

Crawler Excavators Hyundai R180LC-9

Visit Hyundai live at

Technical specs - R180LC-9 Hyundai

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
18.6 t
Transport length
8.65 m
Transport width
2.85 m
Transport height
2.98 m
Bucket capacity
0.76 m³
Track width
600 mm
Max. Reach horizontal
8.86 m
Dredging depth
6.06 m
Tear-out force
107.9 kN
Bucket width
1.18 m
Model series
9
Engine manuf.
Mitsubishi
Engine type
D04FD-TAA
Engine power
94 kW
Displacement
4.25 l
Revolutions at max torque
1800 rpm
Max. torque
468 Nm
No. of cylinders
4
Cylinder bore x stroke
102x130 mm
Emission level
T3

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Hyundai R180LC-9 FAQ

When was the Hyundai R180LC-9 manufactured?

The Hyundai R180LC-9 was first produced in 2019.

How much does the Hyundai R180LC-9 weigh?

The Hyundai R180LC-9 weighs 18.6 tons.

What are the transport dimensions of the Hyundai R180LC-9 crawler excavator?

The Hyundai R180LC-9 has a transport length of 8.65 meters, a transport width of 2.85 meters, and a transport height of 2.98 meters.

What is the track width of the Hyundai R180LC-9's undercarriage?

The Hyundai R180LC-9 has a track width of 600 mm.

What are the excavation performance specifications of the Hyundai R180LC-9?

The Hyundai R180LC-9 has a dredging depth of 6.06 meters and a maximum horizontal reach of 8.86 meters.

What is the tear-out force of the Hyundai R180LC-9?

The Hyundai R180LC-9 has a tear-out force of 107.9 kN.

What are the specifications of the bucket on the Hyundai R180LC-9 crawler excavator?

The bucket of the Hyundai R180LC-9 has a capacity of 0.76 cubic meters and a width of 1.18 meters.

How much is a Hyundai R180LC-9 Crawler excavator (2019u20132025) worth?

The residual value of the Hyundai R180LC-9 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
