R 280 Hyundai excavator specs & Dimensions (1992 - 2026)

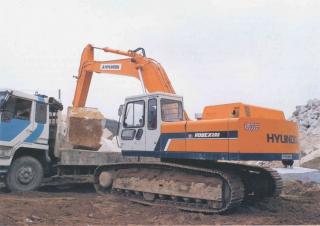

Hyundai R 280 is a crawler excavator manufactured since 1992. It has a weight of 26 tons and a track width of 600 mm. The transpor…

Hyundai R 280 is a crawler excavator manufactured since 1992. It has a weight of 26 tons and a track width of 600 mm. The transport dimensions are 10 meters in length, 3 meters in width, and 3.2 meters in height. The maximum bucket capacity is 1 cubic meter. Special equipment includes air conditioning, a diesel particulate filter, and track adjustment.

Crawler Excavators Hyundai R 280

Visit Hyundai live at

Technical specs - R 280 Hyundai

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
26 t
Transport length
10 m
Transport width
3 m
Transport height
3.2 m
Bucket capacity max.
1 m³
Track width
600 mm
Max. Reach horizontal
11.32 m
Dredging depth
7.9 m
Bucket width
1.61 m
Engine manuf.
Cummins
Engine type
6CT8.3
Engine power
146 kW
Displacement
8.27 l
Revolutions at max torque
1500 rpm
Max. torque
769 Nm
No. of cylinders
6
Cylinder bore x stroke
114 x 135 mm

More technical details, like: bucket capacity, bucket capacity min., undercarriage, boom, tear-out force, model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
Yes
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Hyundai R 280 FAQ

When was the Hyundai R 280 manufactured?

The Hyundai R 280 was first produced in 1992.

How much does the Hyundai R 280 weigh?

The Hyundai R 280 weighs 26 tons.

What are the transport dimensions of the Hyundai R 280 crawler excavator?

The Hyundai R 280 crawler excavator has a transport length of 10 meters, a transport width of 3 meters, and a transport height of 3.2 meters.

What is the track width of the Hyundai R 280's undercarriage?

The Hyundai R 280 has a track width of 600 mm.

What are the excavation performance specifications of the Hyundai R 280?

The Hyundai R 280 has a dredging depth of 7.9 meters and a maximum horizontal reach of 11.32 meters.

What are the specifications of the primary work tool bucket on the Hyundai R 280?

The Hyundai R 280 has a bucket with a maximum capacity of 1 cubic meter and a width of 1.61 meters.

How much is a Hyundai R 280 Crawler excavator (1992u20132025) worth?

The residual value of the Hyundai R 280 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
