HX220S Hyundai excavator specs & Dimensions (2019 - 2026)

Hyundai HX220S is a Crawler Excavator manufactured since 2019, with a weight of 21.26 tons. It features a track width of 600 mm, a…

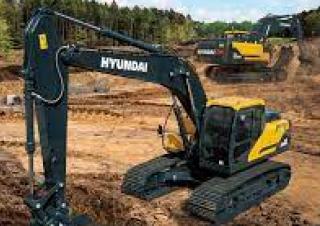

Hyundai HX220S is a Crawler Excavator manufactured since 2019, with a weight of 21.26 tons. It features a track width of 600 mm, a transport length of 9.53 meters, a transport width of 2.99 meters, and a transport height of 3 meters. The excavator has a tear-out force of 133.4 kN, a dredging depth of 6.73 meters, and a maximum horizontal reach of 9.82 meters. The bucket width is 1.08 meters, with a bucket capacity of 0.92 cubic meters. It is equipped with air conditioning.

Crawler Excavators Hyundai HX220S

Visit Hyundai live at

Technical specs - HX220S Hyundai

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
21.26 t
Transport length
9.53 m
Transport width
2.99 m
Transport height
3 m
Bucket capacity
0.92 m³
Track width
600 mm
Max. Reach horizontal
9.82 m
Dredging depth
6.73 m
Tear-out force
133.4 kN
Bucket width
1.08 m
Engine manuf.
Hyundai
Engine type
6BTAA-5.9 (HM5.9)
Engine power
110 kW
Displacement
5.9 l
Revolutions at max torque
1300 rpm
Max. torque
628 Nm
No. of cylinders
6
Cylinder bore x stroke
102x120 mm

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Hyundai HX220S FAQ

When was the Hyundai HX220S manufactured?

The Hyundai HX220S was first produced in 2019.

How much does the Hyundai HX220S weigh?

The Hyundai HX220S weighs 21.26 tons.

What are the transport dimensions of the Hyundai HX220S crawler excavator?

The Hyundai HX220S has a transport length of 9.53 meters, a transport width of 2.99 meters, and a transport height of 3 meters.

What is the track width of the Hyundai HX220S's undercarriage?

The Hyundai HX220S has a track width of 600 mm.

What are the excavation performance specifications of the Hyundai HX220S?

The Hyundai HX220S has a dredging depth of 6.73 meters and a maximum horizontal reach of 9.82 meters.

What is the tear-out force of the Hyundai HX220S?

The Hyundai HX220S has a tear-out force of 133.4 kN.

What are the specifications of the bucket on the Hyundai HX220S crawler excavator?

The bucket of the Hyundai HX220S has a capacity of 0.92 cubic meters and a width of 1.08 meters.

How much is a Hyundai HX220S Crawler excavator (2019u20132025) worth?

The residual value of the Hyundai HX220S depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
