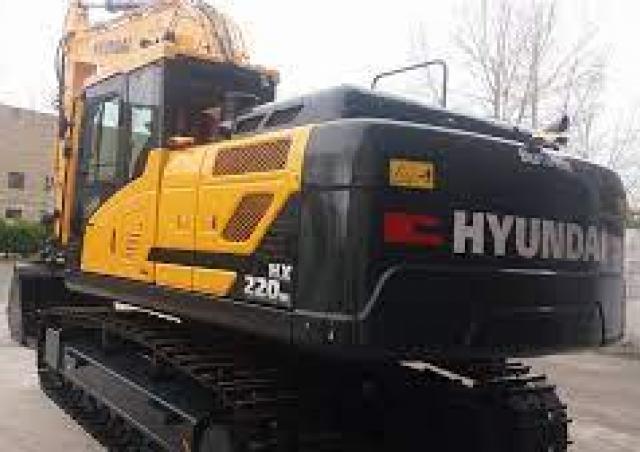

HX220NL Hyundai excavator specs & Dimensions (2016 - 2020)

Hyundai HX220NL is a Crawler Excavator manufactured from 2016 to 2020, with a weight of 22.3 tons. It features a track width of 50…

Hyundai HX220NL is a Crawler Excavator manufactured from 2016 to 2020, with a weight of 22.3 tons. It features a track width of 500 mm, a transport length of 9.51 meters, a transport width of 2.5 meters, and a transport height of 3.1 meters. The machine has a tear-out force of 110 kN, a dredging depth of 6.64 meters, and a maximum horizontal reach of 9.96 meters. The bucket width is 0.99 meters, and the bucket capacity is 1.34 cubic meters. Special equipment includes air conditioning and an overload alert system.

Crawler Excavators Hyundai HX220NL

Visit Hyundai live at

Technical specs - HX220NL Hyundai

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
22.3 t
Transport length
9.51 m
Transport width
2.5 m
Transport height
3.1 m
Bucket capacity
1.34 m³
Undercarriage
NLC
Track width
500 mm
Boom
MB
Max. Reach horizontal
9.96 m
Dredging depth
6.64 m
Tear-out force
110 kN
Bucket width
0.99 m
Engine manuf.
Cummins
Engine type
QSB6.7
Engine power
136 kW
Displacement
6.7 l
Revolutions at max torque
1950 rpm
Max. torque
840/1500 Nm
No. of cylinders
6
Cylinder bore x stroke
107x124 mm
Emission level
IV

More technical details, like: bucket capacity min., bucket capacity max., model series, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Hyundai HX220NL FAQ

When was the Hyundai HX220NL manufactured?

The Hyundai HX220NL was manufactured from 2016 to 2020.

How much does the Hyundai HX220NL weigh?

The Hyundai HX220NL weighs 22.3 tons.

What are the transport dimensions of the Hyundai HX220NL crawler excavator?

The Hyundai HX220NL has a transport length of 9.51 meters, a transport width of 2.5 meters, and a transport height of 3.1 meters.

What are the undercarriage specifications of the Hyundai HX220NL?

The Hyundai HX220NL has a small undercarriage with a track width of 500 mm.

What are the excavation performance specifications of the Hyundai HX220NL?

The Hyundai HX220NL has a dredging depth of 6.64 meters, a maximum horizontal reach of 9.96 meters, and features a monobloc boom.

What is the tear-out force of the Hyundai HX220NL?

The Hyundai HX220NL has a tear-out force of 110 kN. No power rating data is provided in the available information.

What are the bucket specifications of the Hyundai HX220NL crawler excavator?

The Hyundai HX220NL crawler excavator has a bucket capacity of 1.34 cubic meters and a bucket width of 0.99 meters.

How much is a Hyundai HX220NL Crawler excavator (2016u20132020) worth?

The residual value of the Hyundai HX220NL depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
