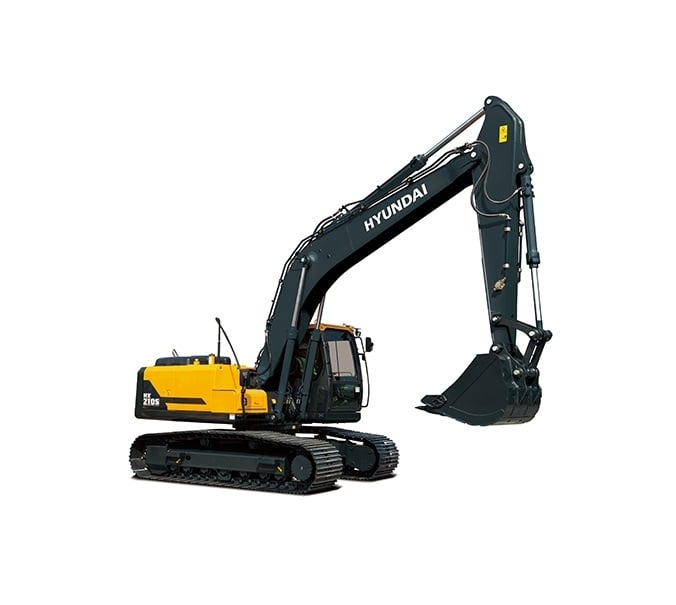

HX210S Hyundai excavator specs & Dimensions (2019 - 2026)

Hyundai HX210S is a Crawler Excavator manufactured since 2019, with a weight of 20.83 tons. It features a track width of 600 mm, a…

Hyundai HX210S is a Crawler Excavator manufactured since 2019, with a weight of 20.83 tons. It features a track width of 600 mm, a transport length of 9.53 meters, a transport width of 2.8 meters, and a transport height of 3 meters. The excavator has a tear-out force of 133.4 kN, a dredging depth of 6.73 meters, and a maximum horizontal reach of 9.82 meters. It comes with a bucket width of 1.08 meters and a bucket capacity of 0.92 cubic meters. The machine is equipped with air conditioning.

Crawler Excavators Hyundai HX210S

Visit Hyundai live at

Technical specs - HX210S Hyundai

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
20.83 t
Transport length
9.53 m
Transport width
2.8 m
Transport height
3 m
Bucket capacity
0.92 m³
Track width
600 mm
Max. Reach horizontal
9.82 m
Dredging depth
6.73 m
Tear-out force
133.4 kN
Bucket width
1.08 m
Engine manuf.
Hyundai
Engine type
6BTAA-5.9 (HM5.9)
Engine power
110 kW
Displacement
5.9 l
Revolutions at max torque
1300 rpm
Max. torque
628 Nm
No. of cylinders
6
Cylinder bore x stroke
102x120 mm

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Hyundai HX210S FAQ

When was the Hyundai HX210S manufactured?

The Hyundai HX210S was first produced in 2019.

How much does the Hyundai HX210S weigh?

The Hyundai HX210S weighs 20.83 tons.

What are the transport dimensions of the Hyundai HX210S crawler excavator?

The Hyundai HX210S has a transport length of 9.53 meters, a transport width of 2.8 meters, and a transport height of 3 meters.

What is the track width of the Hyundai HX210S crawler excavator?

The Hyundai HX210S crawler excavator has a track width of 600 mm.

What are the excavation performance specifications of the Hyundai HX210S?

The Hyundai HX210S has a dredging depth of 6.73 meters and a maximum horizontal reach of 9.82 meters.

What is the tear-out force of the Hyundai HX210S crawler excavator?

The Hyundai HX210S crawler excavator has a tear-out force of 133.4 kN.

What are the bucket specifications of the Hyundai HX210S crawler excavator?

The Hyundai HX210S has a bucket capacity of 0.92 cubic meters and a bucket width of 1.08 meters.

How much is a Hyundai HX210S Crawler excavator (2019u20132025) worth?

The residual value of the Hyundai HX210S depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
