HMK 300 LC Hidromek excavator specs & Dimensions (2006 - 2010)

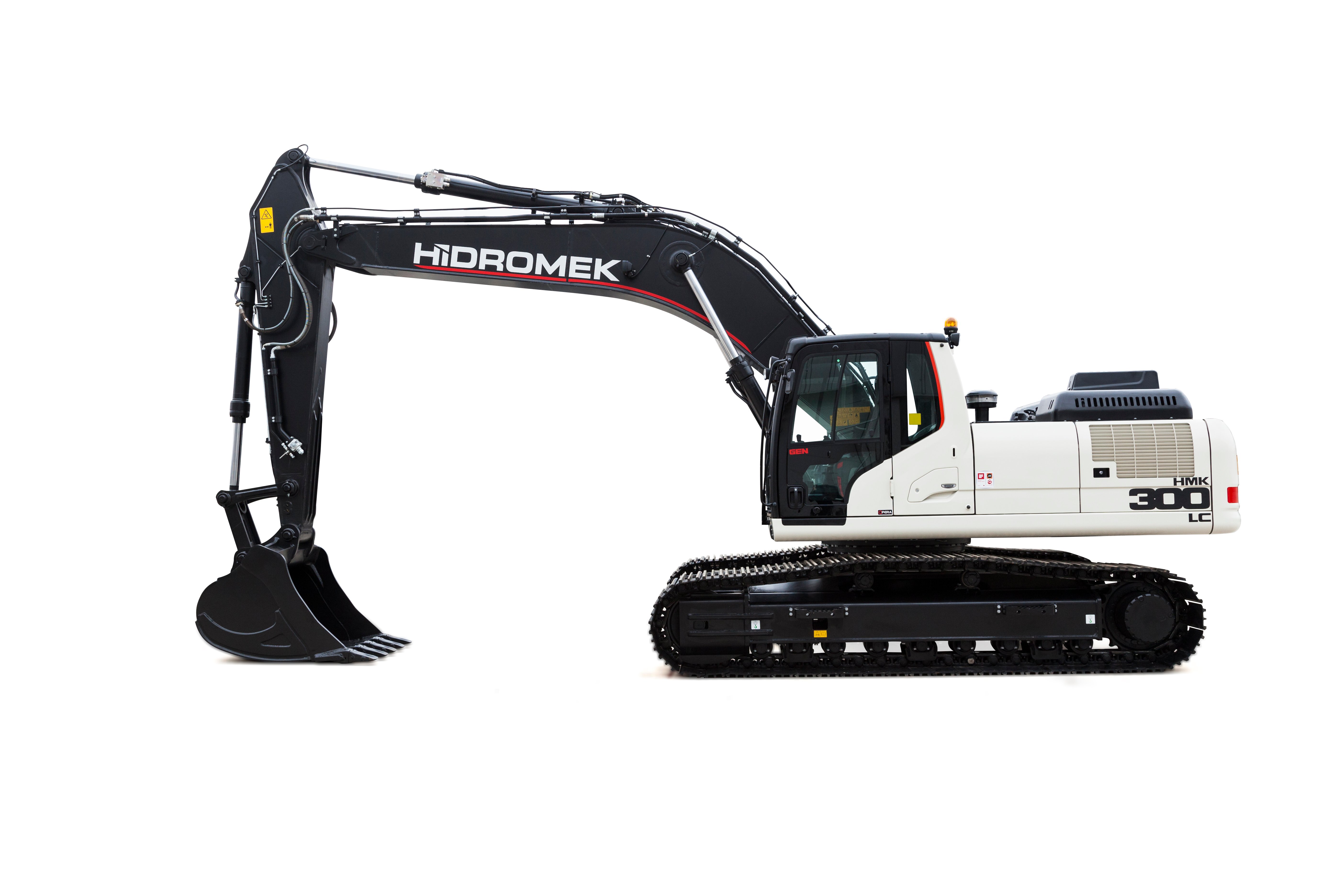

Hidromek HMK 300 LC is a crawler excavator manufactured from 2006 to 2010. It has a weight of 30.5 tons and a track width of 600 m…

Hidromek HMK 300 LC is a crawler excavator manufactured from 2006 to 2010. It has a weight of 30.5 tons and a track width of 600 mm. The transport dimensions are 10.86 meters in length, 2.99 meters in width, and 3.55 meters in height. The machine features a tear-out force of 21.9 kN and a maximum horizontal reach of 10.37 meters. Special equipment includes air conditioning, cabin adjustment, and an overload alert system.

Crawler Excavators Hidromek HMK 300 LC
Crawler Excavators Hidromek HMK 300 LC
Crawler Excavators Hidromek HMK 300 LC
Crawler Excavators Hidromek HMK 300 LC
Crawler Excavators Hidromek HMK 300 LC
Crawler Excavators Hidromek HMK 300 LC
Crawler Excavators Hidromek HMK 300 LC
Crawler Excavators Hidromek HMK 300 LC
Crawler Excavators Hidromek HMK 300 LC
Crawler Excavators Hidromek HMK 300 LC
Crawler Excavators Hidromek HMK 300 LC
Crawler Excavators Hidromek HMK 300 LC

Visit Hidromek live at

Technical specs - HMK 300 LC Hidromek

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
30.5 t
Transport length
10.86 m
Transport width
2.99 m
Transport height
3.55 m
Bucket capacity
0.6 m³
Undercarriage
LC/NLC
Track width
600 mm
Boom
MB
Max. Reach horizontal
10.37 m
Dredging depth
6.5 m
Tear-out force
21.9 kN
Bucket width
0.75 m
Model series
HMK
Engine manuf.
Mitsubishi
Engine type
6 D 16
Engine power
1.2 kW
Displacement
7.5 l
Revolutions at max torque
1600 rpm

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
Yes
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Hidromek HMK 300 LC FAQ

When was the Hidromek HMK 300 LC manufactured?

The Hidromek HMK 300 LC was manufactured from 2006 to 2010.

How much does the Hidromek HMK 300 LC weigh?

The Hidromek HMK 300 LC weighs 30.5 tons.

What are the transport dimensions of the Hidromek HMK 300 LC?

The Hidromek HMK 300 LC has a transport length of 10.86 meters, a transport width of 2.99 meters, and a transport height of 3.55 meters.

What are the undercarriage specifications of the Hidromek HMK 300 LC?

The Hidromek HMK 300 LC has a long, small undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Hidromek HMK 300 LC?

The Hidromek HMK 300 LC has a dredging depth of 6.5 meters, a maximum horizontal reach of 10.37 meters, and features a monobloc boom.

What is the tear-out force of the Hidromek HMK 300 LC?

The Hidromek HMK 300 LC has a tear-out force of 21.9 kN.

What are the specifications of the bucket on the Hidromek HMK 300 LC excavator?

The bucket of the Hidromek HMK 300 LC has a capacity of 0.6 cubic meters and a width of 0.75 meters.

How much is a Hidromek HMK 300 LC Crawler excavator (2006u20132010) worth?

The residual value of the Hidromek HMK 300 LC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
