HMK 230 LC LR Hidromek excavator specs & Dimensions (2019 - 2026)

Hidromek HMK 230 LC LR is a Crawler Excavator manufactured since 2021. It has a weight of 25.6 tons and a track width of 700 mm. T…

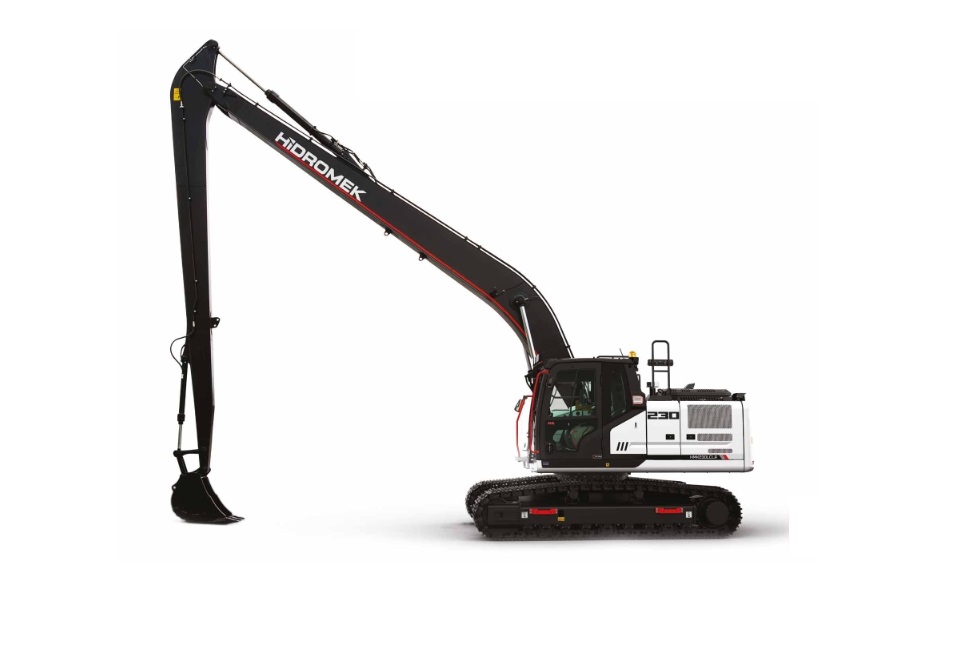

Hidromek HMK 230 LC LR is a Crawler Excavator manufactured since 2021. It has a weight of 25.6 tons and a track width of 700 mm. The transport dimensions are 12.44 meters in length, 3.09 meters in width, and 3.09 meters in height. The dredging depth is 11.24 meters, with a maximum horizontal reach of 15.17 meters. The bucket width is 0.45 meters, and the bucket capacity is 0.45 cubic meters. This model is equipped with a blade.

Crawler Excavators Hidromek HMK 230 LC LR

Visit Hidromek live at

Technical specs - HMK 230 LC LR Hidromek

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
25.75 t
Transport length
12.44 m
Transport width
3.09 m
Transport height
3.01 m
Bucket capacity
0.5 m³
Undercarriage
LC
Track width
700 mm
Boom
MB
Max. Reach horizontal
14.96 m
Dredging depth
11.45 m
Tear-out force
64.68 kN
Bucket width
0.45 m
Model series
HMK
Engine manuf.
Isuzu
Engine type
AR-4HK1X
Engine power
128 kW
Displacement
5.193 l
Revolutions at max torque
2000 rpm
Max. torque
670/1600 Nm
No. of cylinders
4
Cylinder bore x stroke
115x125 mm
Emission level
V

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Hidromek HMK 230 LC LR FAQ

When was the Hidromek HMK 230 LC LR manufactured?

The Hidromek HMK 230 LC LR was first produced in 2019.

How much does the Hidromek HMK 230 LC LR weigh?

The Hidromek HMK 230 LC LR weighs 25.6 tons.

What are the transport dimensions of the Hidromek HMK 230 LC LR?

The transport dimensions of the Hidromek HMK 230 LC LR are 12.44 meters in length, 3.09 meters in width, and 3.09 meters in height.

What are the undercarriage specifications of the Hidromek HMK 230 LC LR?

The Hidromek HMK 230 LC LR has a long undercarriage with a track width of 700 mm.

What are the excavation performance specifications of the Hidromek HMK 230 LC LR?

The Hidromek HMK 230 LC LR has a dredging depth of 11.24 meters, a maximum horizontal reach of 15.17 meters, and features a monobloc boom.

What are the specifications of the primary work tool bucket on the Hidromek HMK 230 LC LR?

The primary work tool bucket of the Hidromek HMK 230 LC LR has a capacity of 0.45 cubic meters and a width of 0.45 meters.

How much is a Hidromek HMK 230 LC LR Crawler excavator (2019u20132025) worth?

The residual value of the Hidromek HMK 230 LC LR depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
