80 NX Gehlmax-IHI excavator specs & Dimensions (2008 - 2012)

Gehlmax-IHI 80 NX is a Crawler Excavator manufactured from 2008 to 2012, with a weight of 8.3 t. It has a track width of 2200 mm, …

Gehlmax-IHI 80 NX is a Crawler Excavator manufactured from 2008 to 2012, with a weight of 8.3 t. It has a track width of 2200 mm, a transport length of 6.04 m, a transport width of 2.2 m, and a transport height of 2.6 m. The excavator features a tear-out force of 55 kN and includes special equipment such as an overload alert.

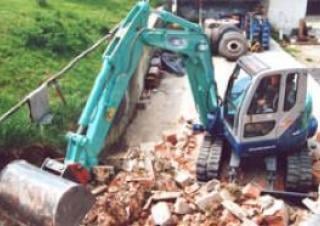

Crawler Excavators Gehlmax-IHI 80 NX

Technical specs - 80 NX Gehlmax-IHI

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.3 t
Transport length
6.04 m
Transport width
2.2 m
Transport height
2.6 m
Bucket capacity
0.25 m³
Track width
2200 mm
Boom
MB
Max. Reach horizontal
7.01 m
Dredging depth
4.5 m
Tear-out force
55 kN
Bucket width
0.76 m
Model series
NX
Engine manuf.
Yanmar
Engine type
4TNV94L
Engine power
40.8 kW
Displacement
3.318 l

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Gehlmax-IHI 80 NX FAQ

When was the Gehlmax-IHI 80 NX manufactured?

The Gehlmax-IHI 80 NX was manufactured from 2008 to 2012.

How much does the Gehlmax-IHI 80 NX weigh?

The Gehlmax-IHI 80 NX weighs 8.3 tons.

What are the transport dimensions of the Gehlmax-IHI 80 NX crawler excavator?

The Gehlmax-IHI 80 NX has a transport length of 6.04 meters, a transport width of 2.2 meters, and a transport height of 2.6 meters.

What is the track width of the Gehlmax-IHI 80 NX's undercarriage?

The Gehlmax-IHI 80 NX has a track width of 2200 mm.

What are the excavation performance specifications of the Gehlmax-IHI 80 NX?

The Gehlmax-IHI 80 NX has a dredging depth of 4.5 meters, a maximum horizontal reach of 7.01 meters, and features a monobloc boom.

What are the power ratings of the Gehlmax-IHI 80 NX?

The source data does not provide power ratings for the Gehlmax-IHI 80 NX.

What are the specifications of the primary work tool bucket on the Gehlmax-IHI 80 NX?

The primary work tool bucket of the Gehlmax-IHI 80 NX has a capacity of 0.25 cubic meters and a width of 0.76 meters.
