H-48 Ford excavator specs & Dimensions (1975 - 2026)

Ford H-48 is a crawler excavator manufactured since 1975. It has a weight of 10 tons, a transport length of 8.2 meters, a transpor…

Ford H-48 is a crawler excavator manufactured since 1975. It has a weight of 10 tons, a transport length of 8.2 meters, a transport width of 2.5 meters, and a transport height of 2.9 meters. The dredging depth is 5.9 meters, and the bucket width is 0.9 meters. The bucket capacity ranges from a minimum of 0.37 cubic meters to a maximum of 0.64 cubic meters.

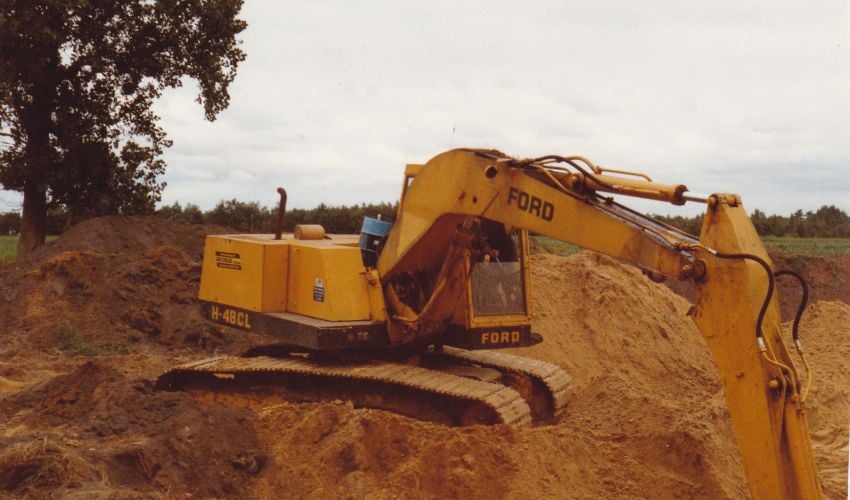

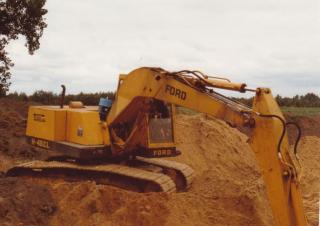

Crawler Excavators Ford H-48

Technical specs - H-48 Ford

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
10 t
Transport length
8.2 m
Transport width
2.5 m
Transport height
2.9 m
Bucket capacity
0.64 m³
Bucket capacity min.
0.37 m³
Bucket capacity max.
0.64 m³
Dredging depth
5.9 m
Bucket width
0.9 m

More technical details, like: undercarriage, track width, boom, max. reach horizontal, tear-out force, model series, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque...

More technical details, like: undercarriage, track width, boom, max. reach horizontal, tear-out force, model series, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Ford H-48 FAQ

When was the Ford H-48 manufactured?

The Ford H-48 was first produced in 1975.

How much does the Ford H-48 crawler excavator weigh?

The Ford H-48 crawler excavator weighs 10 tons.

What are the transport dimensions of the Ford H-48 crawler excavator?

The Ford H-48 crawler excavator has a transport length of 8.2 meters, a transport width of 2.5 meters, and a transport height of 2.9 meters.

What is the dredging depth capability of the Ford H-48 crawler excavator?

The Ford H-48 crawler excavator has a dredging depth capability of 5.9 meters.

What are the specifications of the primary work tool bucket on the Ford H-48 crawler excavator?

The Ford H-48 crawler excavator's primary work tool bucket has a capacity ranging from 0.37 to 0.64 cubic meters, with a standard capacity of 0.64 cubic meters and a width of 0.9 meters.

How much is a Ford H-48 Crawler excavator (1975u20132025) worth?

The residual value of the Ford H-48 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
