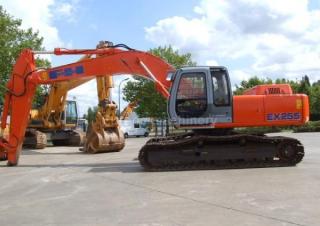

EX 255 Fiat-Hitachi excavator specs & Dimensions (1999 - 2002)

Model rating
8,67 / 10

Fiat-Hitachi EX 255 is a crawler excavator manufactured from 1999 to 2002, with a weight of 26.5 tons. It features a track width o…

Fiat-Hitachi EX 255 is a crawler excavator manufactured from 1999 to 2002, with a weight of 26.5 tons. It features a track width of 600 mm, a transport length of 10.17 meters, a transport width of 2.99 meters, and a transport height of 3.21 meters.

Crawler Excavators Fiat-Hitachi EX 255

Technical specs - EX 255 Fiat-Hitachi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
26.5 t
Transport length
10.17 m
Transport width
2.99 m
Transport height
3.21 m
Bucket capacity
1.4 m³
Track width
600 mm
Boom
MB
Engine manuf.
Cummins
Engine type
6CT8.3
Engine power
125 kW
Displacement
8.3 l
Revolutions at max torque
2300 rpm

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, max. reach horizontal, dredging depth, tear-out force, bucket width, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Fiat-Hitachi EX 255 FAQ

When was the Fiat-Hitachi EX 255 manufactured?

The Fiat-Hitachi EX 255 was manufactured from 1999 to 2002.

How much does the Fiat-Hitachi EX 255 weigh?

The Fiat-Hitachi EX 255 weighs 26.5 tons.

What are the transport dimensions of the Fiat-Hitachi EX 255?

The Fiat-Hitachi EX 255 has a transport length of 10.17 meters, a transport width of 2.99 meters, and a transport height of 3.21 meters.

What is the track width of the Fiat-Hitachi EX 255's undercarriage?

The Fiat-Hitachi EX 255 has a track width of 600 mm.

What type of boom does the Fiat-Hitachi EX 255 use for excavation?

The Fiat-Hitachi EX 255 uses a monobloc boom for excavation.

What is the bucket capacity of the Fiat-Hitachi EX 255 excavator?

The bucket capacity of the Fiat-Hitachi EX 255 is 1.4 cubic meters.

How much is a Fiat-Hitachi EX 255 Crawler excavator (1999u20132002) worth?

The residual value of the Fiat-Hitachi EX 255 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
