90 ZT Eurocomach excavator specs & Dimensions (2019 - 2023)

Eurocomach 90 ZT is a Crawler Excavator manufactured since 2019, with a weight of 9 tons. It features a track width of 450 mm, a t…

Eurocomach 90 ZT is a Crawler Excavator manufactured since 2019, with a weight of 9 tons. It features a track width of 450 mm, a transport length of 6.19 meters, a transport width of 2.32 meters, and a transport height of 2.56 meters. The machine has a tear-out force of 58.5 kN, a dredging depth of 4.27 meters, and a maximum horizontal reach of 6.85 meters. Special equipment includes air conditioning, a blade, cabin adjustment, a diesel particulate filter, material handling capabilities, an overload alert, and both hydraulic and mechanical quick hitches.

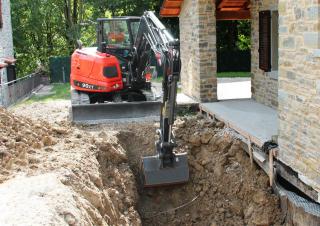

Crawler Excavators Eurocomach 90 ZT
Crawler Excavators Eurocomach 90 ZT
Crawler Excavators Eurocomach 90 ZT
Crawler Excavators Eurocomach 90 ZT
Crawler Excavators Eurocomach 90 ZT
Crawler Excavators Eurocomach 90 ZT
Crawler Excavators Eurocomach 90 ZT
Crawler Excavators Eurocomach 90 ZT

Technical specs - 90 ZT Eurocomach

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
9 t
Transport length
6.19 m
Transport width
2.32 m
Transport height
2.56 m
Track width
450 mm
Boom
VA
Max. Reach horizontal
6.85 m
Dredging depth
4.27 m
Tear-out force
58.5 kN
Model series
MME
Engine manuf.
Yanmar
Engine type
4TNV98CT
Engine power
53.7 kW
Displacement
3.319 l
Revolutions at max torque
2300 rpm
Max. torque
308/1365 Nm
No. of cylinders
4
Emission level
V

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, bucket width, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
Yes
Cabin adjustment
Yes
Overload alert
Yes
Material Handling Excavator
Yes
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
Yes

Download datasheets (PDF)

Eurocomach 90 ZT FAQ

When was the Eurocomach 90 ZT manufactured?

The Eurocomach 90 ZT was manufactured from 2019 to 2023.

How much does the Eurocomach 90 ZT weigh?

The Eurocomach 90 ZT weighs 9 tons.

What are the transport dimensions of the Eurocomach 90 ZT?

The Eurocomach 90 ZT has a transport length of 6.19 meters, a transport width of 2.32 meters, and a transport height of 2.56 meters.

What is the track width of the Eurocomach 90 ZT's undercarriage?

The Eurocomach 90 ZT has a track width of 450 mm in its undercarriage.

What are the excavation performance specifications of the Eurocomach 90 ZT?

The Eurocomach 90 ZT has an adjustable boom, a maximum horizontal reach of 6.85 meters, and a dredging depth of 4.27 meters.

What power ratings are available for the Eurocomach 90 ZT?

The source data does not provide power ratings for the Eurocomach 90 ZT.

How much is a Eurocomach 90 ZT Crawler excavator (2019u20132023) worth?

The residual value of the Eurocomach 90 ZT depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
