85 SB Eurocomach excavator specs & Dimensions (2019 - 2023)

Eurocomach 85 SB is a Crawler Excavator manufactured since 2019. It has a weight of 8.3 tons and a track width of 450 mm. The tran…

Eurocomach 85 SB is a Crawler Excavator manufactured since 2019. It has a weight of 8.3 tons and a track width of 450 mm. The transport dimensions are 6.29 m in length, 2.32 m in width, and 2.56 m in height. The excavator features a tear-out force of 58.5 kN, a dredging depth of 3.8 m, and a maximum horizontal reach of 6.24 m. Special equipment includes air conditioning, a blade, cabin adjustment, a diesel particulate filter, material handling capabilities, an overload alert, and both hydraulic and mechanical quick hitches.

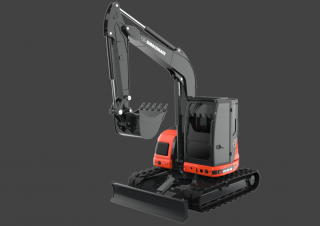

Crawler Excavators Eurocomach 85 SB

Technical specs - 85 SB Eurocomach

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.3 t
Transport length
6.29 m
Transport width
2.32 m
Transport height
2.56 m
Track width
450 mm
Boom
MB
Max. Reach horizontal
6.24 m
Dredging depth
3.8 m
Tear-out force
58.5 kN
Model series
MME
Engine manuf.
Yanmar
Engine type
4TNV98CT
Engine power
53.7 kW
Displacement
3.319 l
Revolutions at max torque
2300 rpm
Max. torque
308/1365 Nm
No. of cylinders
4
Emission level
V

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, bucket width, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
Yes
Cabin adjustment
Yes
Overload alert
Yes
Material Handling Excavator
Yes
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
Yes

Download datasheets (PDF)

Eurocomach 85 SB FAQ

When was the Eurocomach 85 SB manufactured?

The Eurocomach 85 SB was manufactured from 2019 to 2023.

How much does the Eurocomach 85 SB weigh?

The Eurocomach 85 SB weighs 8.3 tons.

What are the transport dimensions of the Eurocomach 85 SB crawler excavator?

The Eurocomach 85 SB has a transport length of 6.29 meters, a transport width of 2.32 meters, and a transport height of 2.56 meters.

What is the track width of the Eurocomach 85 SB's undercarriage?

The Eurocomach 85 SB has a track width of 450 mm.

What are the excavation performance specifications of the Eurocomach 85 SB?

The Eurocomach 85 SB has a dredging depth of 3.8 meters, a maximum horizontal reach of 6.24 meters, and features a monobloc boom.

What are the power ratings of the Eurocomach 85 SB?

The source data does not provide power rating information for the Eurocomach 85 SB.

How much is a Eurocomach 85 SB Crawler excavator (2019u20132023) worth?

The residual value of the Eurocomach 85 SB depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
