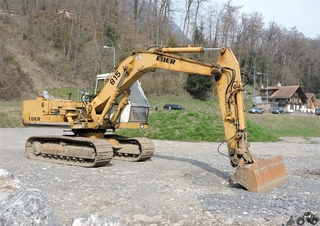

R 815 Eder excavator specs & Dimensions (1987 - 1993)

Eder R 815 is a crawler excavator manufactured from 1987 to 1993, with a weight of 14.9 tons and a track width of 600 mm.

Crawler Excavators Eder R 815

Technical specs - R 815 Eder

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
14.9 t
Bucket capacity
0.7 m³
Track width
600 mm
Engine manuf.
Deutz
Engine type
F5L912
Engine power
62 kW

More technical details, like: transport length, transport width, transport height, bucket capacity min., bucket capacity max., undercarriage, boom, max. reach horizontal, dredging depth, tear-out force, bucket width, model series...

More technical details, like: transport length, transport width, transport height, bucket capacity min., bucket capacity max., undercarriage, boom, max. reach horizontal, dredging depth, tear-out force, bucket width, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Eder R 815 FAQ

When was the Eder R 815 manufactured?

The Eder R 815 was manufactured from 1987 to 1993.

How much does the Eder R 815 weigh?

The Eder R 815 weighs 14.9 tons.

What is the track width of the Eder R 815 crawler excavator?

The Eder R 815 crawler excavator has a track width of 600 mm.

What is the bucket capacity of the Eder R 815 crawler excavator?

The bucket capacity of the Eder R 815 crawler excavator is 0.7 cubic meters.
