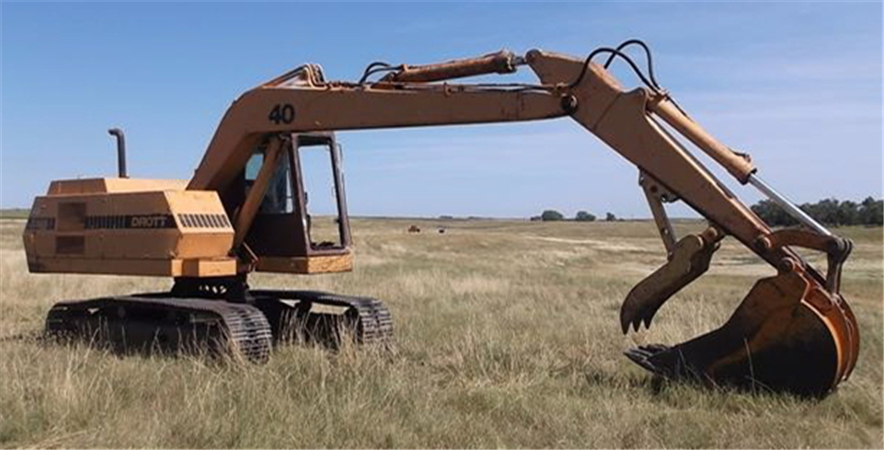

40EC Drott excavator specs & Dimensions (1971 - 1980)

Drott 40EC is a crawler excavator manufactured from 1971 to 1980, with a weight of 16 tons and a transport width of 2 meters. It h…

Drott 40EC is a crawler excavator manufactured from 1971 to 1980, with a weight of 16 tons and a transport width of 2 meters. It has a dredging depth of 6 meters and a maximum horizontal reach of 9 meters. The bucket width is 1 meter, and it is equipped with a diesel particulate filter.

Crawler Excavators Drott 40EC

Technical specs - 40EC Drott

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
16.78 t
Transport width
2.74 m
Boom
MB
Max. Reach horizontal
9.19 m
Dredging depth
6.4 m
Bucket width
1.52 m
Engine manuf.
GMC
Engine type
4-71
Engine power
111.9 kW
No. of cylinders
4

More technical details, like: transport length, transport height, bucket capacity, bucket capacity min., bucket capacity max., undercarriage, track width, tear-out force, model series, dimension lxwxh, displacement, revolutions at max torque...

More technical details, like: transport length, transport height, bucket capacity, bucket capacity min., bucket capacity max., undercarriage, track width, tear-out force, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Drott 40EC FAQ

When was the Drott 40EC manufactured?

The Drott 40EC was manufactured from 1971 to 1980.

How much does the Drott 40EC weigh?

The Drott 40EC weighs 16.78 tons.

What is the transport width of the Drott 40EC?

The transport width of the Drott 40EC is 2.74 meters.

What are the excavation performance specifications of the Drott 40EC?

The Drott 40EC has a dredging depth of 6.4 meters, a maximum horizontal reach of 9.19 meters, and features a monobloc boom.

What is the bucket width of the Drott 40EC crawler excavator?

The bucket width of the Drott 40EC crawler excavator is 1.52 meters.

How much is a Drott 40EC Crawler excavator (1971u20131980) worth?

The residual value of the Drott 40EC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
