635E Dresser excavator specs & Dimensions (1989 - 1996)

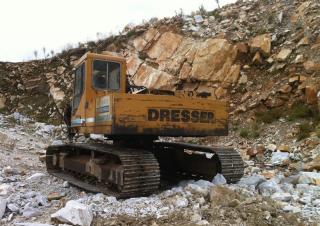

Dresser 635E is a crawler excavator manufactured from 1989 to 1996, with a weight of 17 tons. It features a track width of 850 mm,…

Dresser 635E is a crawler excavator manufactured from 1989 to 1996, with a weight of 17 tons. It features a track width of 850 mm, a transport length of 8 meters, and a transport height of 2 meters. The excavator is equipped with cabin adjustment, a diesel particulate filter, and track adjustment.

Crawler Excavators Dresser 635E

Technical specs - 635E Dresser

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
17.25 t
Transport length
8.98 m
Transport height
2.93 m
Undercarriage
SL
Track width
850 mm
Boom
MB
Engine manuf.
Dresser
Engine type
D359T
Engine power
87 kW
Displacement
5.88 l
Revolutions at max torque
1500 rpm
Max. torque
542 Nm
No. of cylinders
6
Cylinder bore x stroke
102 x 120 mm

More technical details, like: transport width, bucket capacity, bucket capacity min., bucket capacity max., max. reach horizontal, dredging depth, tear-out force, bucket width, model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
Yes
Blade
No
Cabin adjustment
Yes
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Dresser 635E FAQ

When was the Dresser 635E manufactured?

The Dresser 635E was manufactured from 1989 to 1996.

How much does the Dresser 635E weigh?

The Dresser 635E weighs 17.25 tons.

What are the transport dimensions of the Dresser 635E crawler excavator?

The Dresser 635E has a transport length of 8.98 meters and a transport height of 2.93 meters.

What are the undercarriage specifications of the Dresser 635E?

The Dresser 635E has a standard undercarriage with a track width of 850 mm.

What type of boom does the Dresser 635E have?

The Dresser 635E has a Monobloc boom.
