DX260LCA Doosan excavator specs & Dimensions (2019 - 2023)

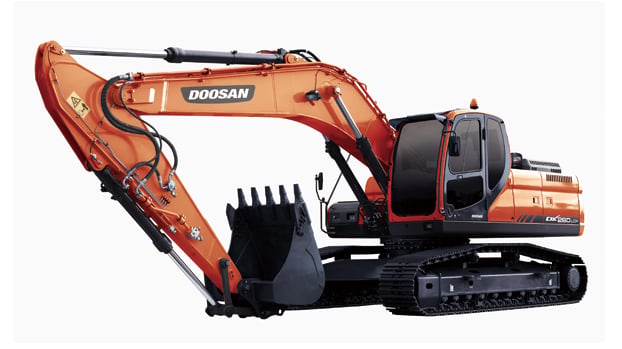

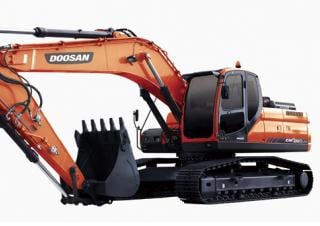

Doosan DX260LCA is a crawler excavator manufactured since 2019, with a weight of 24 tons. It features a track width of 600 mm, a t…

Doosan DX260LCA is a crawler excavator manufactured since 2019, with a weight of 24 tons. It features a track width of 600 mm, a transport length of 10 meters, a transport width of 3 meters, and a transport height of 3 meters. The excavator has a tear-out force of 165 kN, a dredging depth of 6 meters, and a maximum horizontal reach of 10 meters. It is equipped with a bucket that has a width of 1 meter and a capacity of 1 cubic meter. Special equipment includes air conditioning.

Crawler Excavators Doosan DX260LCA

Technical specs - DX260LCA Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
24.8 t
Transport length
10.1 m
Transport width
3.2 m
Transport height
3.2 m
Bucket capacity
1.1 m³
Track width
600 mm
Max. Reach horizontal
10.01 m
Dredging depth
6.8 m
Tear-out force
165 kN
Bucket width
1.38 m
Model series
DX
Engine manuf.
Doosan
Engine type
DE08TIS
Engine power
143 kW
Displacement
8.1 l
Revolutions at max torque
1400 rpm
Max. torque
834 Nm
No. of cylinders
6
Cylinder bore x stroke
111 x 139 mm

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Doosan DX260LCA FAQ

When was the Doosan DX260LCA manufactured?

The Doosan DX260LCA was manufactured from 2019 to 2023.

How much does the Doosan DX260LCA weigh?

The Doosan DX260LCA weighs 24.8 tons.

What are the transport dimensions of the Doosan DX260LCA crawler excavator?

The Doosan DX260LCA has a transport length of 10.1 meters, a transport width of 3.2 meters, and a transport height of 3.2 meters.

What is the track width of the Doosan DX260LCA's undercarriage?

The Doosan DX260LCA has a track width of 600 mm.

What are the excavation performance specifications of the Doosan DX260LCA?

The Doosan DX260LCA has a dredging depth of 6.8 meters and a maximum horizontal reach of 10.01 meters.

What is the tear-out force of the Doosan DX260LCA?

The Doosan DX260LCA has a tear-out force of 165 kN.

What are the specifications of the primary work tool on the Doosan DX260LCA?

The primary work tool of the Doosan DX260LCA has a bucket capacity of 1.1 cubic meters and a bucket width of 1.38 meters.

How much is a Doosan DX260LCA Crawler excavator (2019u20132023) worth?

The residual value of the Doosan DX260LCA depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Doosan DX260LCA overview

Engine

Doosan Engine(DE08TIS)

Doosan product gives high performance through in-house engine. Doosan engine(in-house) perfectly harmonized with the hydraulic system and provides strong power. Mechanical engine provides high resistance to moisture, dust, and bad fuel quality. The best engine power in the industry(192HP) provides stable working speed even in the heavy workload situation.


Travel Device

In house travel device provides simple internal structure and increases efficiency of the performance. Thicker sprocket minimizes incoming debris and provides higher durability.


Fuel Filter

High efficiency fuel filtration is attained by the use of multiple filters, including a fuel prefilter with a water separator that removes most moisture from the fuel.


Hydraulic and electronic system

Doosan dx260lca hydraulic excavator : excellent productivity, quality & durability

DX260LCA has been built for the industry's best productivity and cycle times. Through large size engine and pump, DX260LCA has the best productivity among equivalent models.


Performance & Productivity

The performance of the DX260LCA has a direct effect on its productivity. Its new improved engine and new EPOS™ controlled hydraulic system have combined to create an unbeatable hydraulic excavator, with a cost/performance ratio that makes the DX260LCA even more appealing.


Hydraulic Pump

The Main pump has a capacity of 2 x 230ℓ/min reducing cycle time while a high-capacity gear pump improves pilot line efficiency.


Excavator Control

Improved Excavator control by New EPOS™ system. The brains of the hydraulic excavator, the EPOS™ (Electronic Power Optimizing System), have been improved, through a CAN Controller Area Network communication link, these units are now perfectly synchronised.


Fuel Efficiency

The pump continues to supply flow even when the maximum pressure on the system is reached due to severe working environments and large workloads. Relief cutoff technology of DX225LCA prevents transfer of unnecessary flow to maintain powerful working level at the maximum value while reducing consumption of fuel.


Optimized Lever Control & Auto Idle

When operator takes a break and leaves the control joystick fixed, both of the engine and the pump are kept in standby mode and prevents unnecessary fuel consumption.


Pump Matching Technology

Engine & pump matching, the new technology of Doosan, fully resolves problems; low response time of the system, unnecessary fuel consumption. Timed response time between pump and engine efficiently reduces unnecessary fuel consumption as well as exhaust fumes.


Undercarriage

Tracks

The chain is composed of self-lubricating sealed links isolated from all external contamination. The tracks are locked by mechanically bolted pins.


Upper Structure

Smooth and Fast Swing by Increased Swing Torque

4% - 6% more torque than the previous model. DX260LCA will complete your challenging jobs, especially when required instant power with better productivity than the previous model.


Remote Greasing Points

To make maintenance easier, the arm and boom greasing points have been centralized. Remote a grouped greasing points on boom & arm.


Cab

Operator Comfort

More space, better visibility, air conditioning, a very comfortable seat. These are all elements that ensure that the operator can work for hours and hours in excellent conditions.


Air Suspension Seat (Optional)

Equipped with various functions of adjustment for both arm and lumbar support, it reduces the vibration transmitted during work in an effective way. Also for considering winter working environment, Seat warmer functions equipped.


Air Conditioning with Climate Control

The high performance air conditioning provides an optimized air flow and adjusts itself according to the conditions inside the cabin. Fine-tuning of the climate allows the operator to be satisfied.


Convenient Fuse Box

The fuse box is conveniently located in a section of the storage compartment behind the operator’s seat providing a clean environment and easy access.
