DX235LCR-7 Doosan excavator specs & Dimensions (2021 - 2023)

Doosan DX235LCR-7 is a Crawler Excavator manufactured since 2021. It has a weight of 24.3 tons and a track width of 600 mm. The tr…

Doosan DX235LCR-7 is a Crawler Excavator manufactured since 2021. It has a weight of 24.3 tons and a track width of 600 mm. The transport dimensions are 9.94 meters in length, 2.99 meters in width, and 2.983 meters in height. The dredging depth is 6.18 meters, and the maximum horizontal reach is 9.415 meters. The bucket width is 1.309 meters, with a capacity ranging from 0.51 to 1.23 cubic meters, and a standard capacity of 1.05 cubic meters. Special equipment includes air conditioning and an overload alert system.

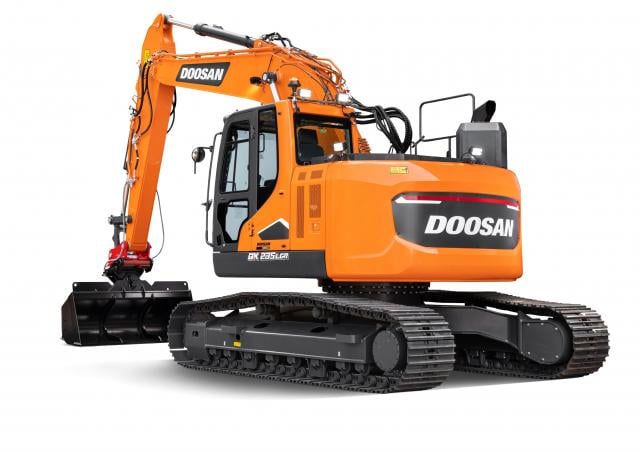

Crawler Excavators Doosan DX235LCR-7
Crawler Excavators Doosan DX235LCR-7
Crawler Excavators Doosan DX235LCR-7
Crawler Excavators Doosan DX235LCR-7
Crawler Excavators Doosan DX235LCR-7
Crawler Excavators Doosan DX235LCR-7
Crawler Excavators Doosan DX235LCR-7
Crawler Excavators Doosan DX235LCR-7

Technical specs - DX235LCR-7 Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
24.3 t
Transport length
9.94 m
Transport width
2.99 m
Transport height
2.98 m
Bucket capacity
1.05 m³
Bucket capacity min.
0.51 m³
Bucket capacity max.
1.23 m³
Undercarriage
LC
Track width
600 mm
Boom
MB
Max. Reach horizontal
9.415 m
Dredging depth
6.18 m
Bucket width
1.309 m
Model series
DX
Engine manuf.
Doosan
Engine type
DL06V
Engine power
141.3 kW
Displacement
5.89 l
No. of cylinders
6
Cylinder bore x stroke
100x125 mm
Emission level
V

More technical details, like: tear-out force, dimension lxwxh, revolutions at max torque, max. torque are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Doosan DX235LCR-7 FAQ

When was the Doosan DX235LCR-7 manufactured?

The Doosan DX235LCR-7 was manufactured from 2021 to 2023.

How much does the Doosan DX235LCR-7 weigh?

The Doosan DX235LCR-7 weighs 24.3 tons.

What are the transport dimensions of the Doosan DX235LCR-7?

The Doosan DX235LCR-7 has a transport length of 9.94 meters, a transport width of 2.99 meters, and a transport height of 2.98 meters.

What are the undercarriage specifications of the Doosan DX235LCR-7?

The Doosan DX235LCR-7 has a long undercarriage and a track width of 600 mm.

What are the excavation performance specifications of the Doosan DX235LCR-7?

The Doosan DX235LCR-7 has a dredging depth of 6.18 meters, a maximum horizontal reach of 9.415 meters, and is equipped with a monobloc boom.

What are the specifications of the primary work tool bucket on the Doosan DX235LCR-7?

The Doosan DX235LCR-7 has a bucket with a capacity of 1.05 mu00b3, a maximum capacity of 1.23 mu00b3, a minimum capacity of 0.51 mu00b3, and a bucket width of 1.309 meters.

How much is a Doosan DX235LCR-7 Crawler excavator (2021u20132023) worth?

The residual value of the Doosan DX235LCR-7 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
