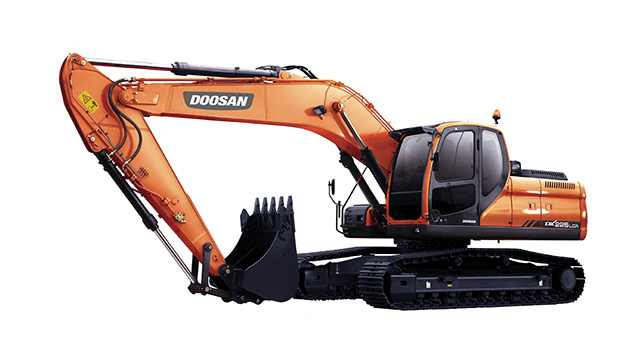

DX225LCA-2 Doosan excavator specs & Dimensions (2020 - 2023)

Doosan DX225LCA-2 is a Crawler Excavator manufactured since 2020. It has a weight of 22 tons and a track width of 800 mm. The tran…

Doosan DX225LCA-2 is a Crawler Excavator manufactured since 2020. It has a weight of 22 tons and a track width of 800 mm. The transport dimensions are 9.505 meters in length, 2.99 meters in width, and 2.955 meters in height. The dredging depth is 6.595 meters, and the maximum horizontal reach is 9.7 meters. The bucket width is 1.367 meters, with a capacity ranging from 0.92 cubic meters to 1.4 cubic meters.

Crawler Excavators Doosan DX225LCA-2
Crawler Excavators Doosan DX225LCA-2
Crawler Excavators Doosan DX225LCA-2
Crawler Excavators Doosan DX225LCA-2

Technical specs - DX225LCA-2 Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
22 t
Transport length
9.505 m
Transport width
2.99 m
Transport height
2.955 m
Bucket capacity
0.92 m³
Bucket capacity min.
0.92 m³
Bucket capacity max.
1.4 m³
Track width
800 mm
Boom
MB
Max. Reach horizontal
9.7 m
Dredging depth
6.595 m
Bucket width
1.367 m
Model series
DX
Engine manuf.
Doosan
Engine type
DB58TIS
Engine power
109 kW
Revolutions at max torque
1400 rpm
No. of cylinders
6
Cylinder bore x stroke
102x108 mm
Emission level
TIER II

More technical details, like: undercarriage, tear-out force, dimension lxwxh, displacement, max. torque are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Doosan DX225LCA-2 FAQ

When was the Doosan DX225LCA-2 manufactured?

The Doosan DX225LCA-2 was manufactured from 2020 to 2023.

How much does the Doosan DX225LCA-2 weigh?

The Doosan DX225LCA-2 weighs 22 tons.

What are the transport dimensions of the Doosan DX225LCA-2 crawler excavator?

The Doosan DX225LCA-2 has a transport length of 9.51 meters, a transport width of 2.99 meters, and a transport height of 2.96 meters.

What is the track width of the Doosan DX225LCA-2 crawler excavator?

The Doosan DX225LCA-2 crawler excavator has a track width of 800 mm.

What are the excavation performance specifications of the Doosan DX225LCA-2?

The Doosan DX225LCA-2 has a dredging depth of 6.595 meters, a maximum horizontal reach of 9.7 meters, and is equipped with a monobloc boom.

What are the bucket specifications of the Doosan DX225LCA-2 crawler excavator?

The Doosan DX225LCA-2 has a bucket capacity ranging from 0.92 to 1.4 cubic meters and a bucket width of 1.367 meters.

How much is a Doosan DX225LCA-2 Crawler excavator (2020u20132023) worth?

The residual value of the Doosan DX225LCA-2 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
