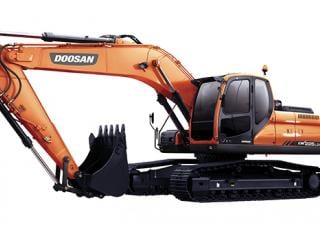

DX225LCA Doosan excavator specs & Dimensions (2019 - 2023)

Doosan DX225LCA is a crawler excavator manufactured since 2019. It has a weight of 21 tons and a track width of 600 mm. The transp…

Doosan DX225LCA is a crawler excavator manufactured since 2019. It has a weight of 21 tons and a track width of 600 mm. The transport dimensions are 9 meters in length, 2 meters in width, and 3 meters in height. The machine features a tear-out force of 149 kN, a dredging depth of 6 meters, and a maximum horizontal reach of 9 meters. The bucket width is 1 meter, and it is equipped with air conditioning.

Crawler Excavators Doosan DX225LCA

Technical specs - DX225LCA Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
21.5 t
Transport length
9.49 m
Transport width
2.99 m
Transport height
3 m
Bucket capacity
0.92 m³
Track width
600 mm
Max. Reach horizontal
9.73 m
Dredging depth
6.62 m
Tear-out force
149 kN
Bucket width
1.24 m
Model series
DX
Engine manuf.
Doosan
Engine type
DB58TIS
Engine power
115 kW
Displacement
5.79 l
Revolutions at max torque
1400 rpm
Max. torque
603 Nm
No. of cylinders
6
Cylinder bore x stroke
102 x 118 mm
Emission level
T2

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Doosan DX225LCA FAQ

When was the Doosan DX225LCA manufactured?

The Doosan DX225LCA was manufactured from 2019 to 2023.

How much does the Doosan DX225LCA weigh?

The Doosan DX225LCA weighs 21.5 tons.

What are the transport dimensions of the Doosan DX225LCA?

The Doosan DX225LCA has a transport length of 9.49 meters, a transport width of 2.99 meters, and a transport height of 3 meters.

What is the track width of the Doosan DX225LCA crawler excavator?

The Doosan DX225LCA crawler excavator has a track width of 600 mm.

What are the excavation performance specifications of the Doosan DX225LCA?

The Doosan DX225LCA has a dredging depth of 6.62 meters and a maximum horizontal reach of 9.73 meters.

What is the tear-out force of the Doosan DX225LCA?

The Doosan DX225LCA has a tear-out force of 149 kN.

What are the specifications of the primary work tool bucket on the Doosan DX225LCA?

The primary work tool bucket of the Doosan DX225LCA has a capacity of 0.92 cubic meters and a width of 1.24 meters.
