DX225LC-7 Doosan excavator specs & Dimensions (2021 - 2023)

Doosan DX225LC-7 is a Crawler Excavator manufactured since 2021, with a weight of 26.3 tons. It features a track width of 600 mm, …

Doosan DX225LC-7 is a Crawler Excavator manufactured since 2021, with a weight of 26.3 tons. It features a track width of 600 mm, a transport length of 10.145 meters, a transport width of 3 meters, and a transport height of 3.085 meters. The machine has a dredging depth of 6.31 meters and a maximum horizontal reach of 9.65 meters. The bucket width is 1.43 meters, with a capacity ranging from 0.51 to 1.51 cubic meters, and a standard capacity of 1.17 cubic meters. Special equipment includes air conditioning and an overload alert system.

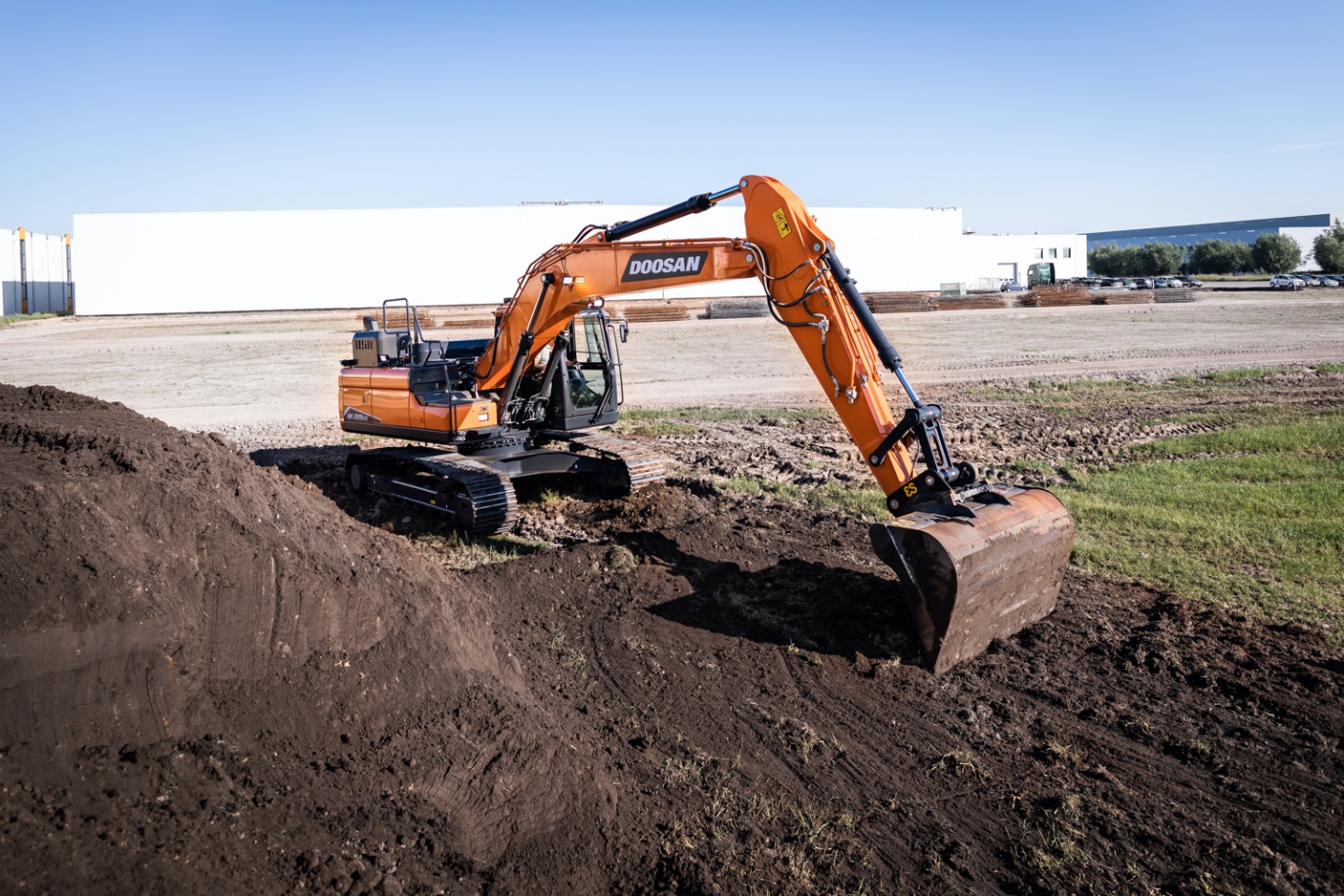

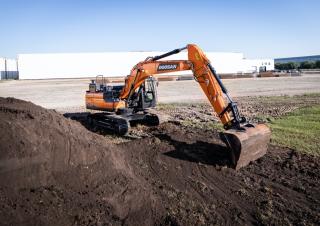

Crawler Excavators Doosan DX225LC-7
Crawler Excavators Doosan DX225LC-7
Crawler Excavators Doosan DX225LC-7
Crawler Excavators Doosan DX225LC-7
Crawler Excavators Doosan DX225LC-7
Crawler Excavators Doosan DX225LC-7

Technical specs - DX225LC-7 Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
26.3 t
Transport length
10.15 m
Transport width
3 m
Transport height
3.09 m
Bucket capacity
1.17 m³
Bucket capacity min.
0.51 m³
Bucket capacity max.
1.51 m³
Undercarriage
LC
Track width
600 mm
Boom
MB
Max. Reach horizontal
9.65 m
Dredging depth
6.31 m
Bucket width
1.43 m
Model series
DX
Engine manuf.
Doosan
Engine type
DL06V
Engine power
141.3 kW
Displacement
5.89 l
No. of cylinders
6
Cylinder bore x stroke
100x125 mm
Emission level
V

More technical details, like: tear-out force, dimension lxwxh, revolutions at max torque, max. torque are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Doosan DX225LC-7 FAQ

When was the Doosan DX225LC-7 manufactured?

The Doosan DX225LC-7 was manufactured from 2021 to 2023.

How much does the Doosan DX225LC-7 weigh?

The Doosan DX225LC-7 weighs 26.3 tons.

What are the transport dimensions of the Doosan DX225LC-7 crawler excavator?

The Doosan DX225LC-7 has a transport length of 10.15 meters, a transport width of 3 meters, and a transport height of 3.09 meters.

What are the undercarriage specifications of the Doosan DX225LC-7?

The Doosan DX225LC-7 has a long undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Doosan DX225LC-7?

The Doosan DX225LC-7 has a dredging depth of 6.31 meters, a maximum horizontal reach of 9.65 meters, and is equipped with a monobloc boom.

What are the specifications of the primary work tool bucket on the Doosan DX225LC-7?

The Doosan DX225LC-7's bucket has a capacity of 1.17 mu00b3, with a maximum capacity of 1.51 mu00b3 and a minimum capacity of 0.51 mu00b3, and a width of 1.43 meters.

How much is a Doosan DX225LC-7 Crawler excavator (2021u20132023) worth?

The residual value of the Doosan DX225LC-7 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
