DX220AF Doosan excavator specs & Dimensions (2019 - 2023)

Doosan DX220AF is a Crawler Excavator manufactured since 2019. It has a weight of 22 tons and a track width of 800 mm. The transpo…

Doosan DX220AF is a Crawler Excavator manufactured since 2019. It has a weight of 22 tons and a track width of 800 mm. The transport dimensions are 9 meters in length, 3 meters in width, and 3 meters in height. The excavator features a tear-out force of 142 kN, a dredging depth of 6 meters, and a maximum horizontal reach of 9 meters. The bucket width is 1 meter, and it is equipped with air conditioning.

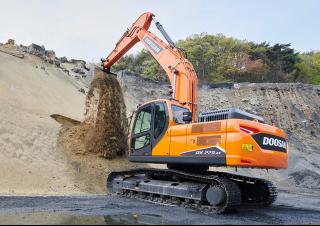

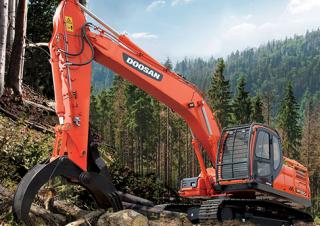

Crawler Excavators Doosan DX220AF
Crawler Excavators Doosan DX220AF
Crawler Excavators Doosan DX220AF
Crawler Excavators Doosan DX220AF

Technical specs - DX220AF Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
22 t
Transport length
9.49 m
Transport width
3.19 m
Transport height
3 m
Bucket capacity
0.92 m³
Track width
800 mm
Max. Reach horizontal
9.73 m
Dredging depth
6.62 m
Tear-out force
142 kN
Bucket width
1.3 m
Model series
DX
Engine manuf.
Doosan
Engine type
DB58TIS
Engine power
115 kW
Displacement
5.79 l
Revolutions at max torque
1400 rpm
Max. torque
603 Nm
No. of cylinders
6
Cylinder bore x stroke
102 x 118 mm
Emission level
T2

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Doosan DX220AF FAQ

When was the Doosan DX220AF manufactured?

The Doosan DX220AF was manufactured from 2019 to 2023.

How much does the Doosan DX220AF weigh?

The Doosan DX220AF weighs 22 tons.

What are the transport dimensions of the Doosan DX220AF crawler excavator?

The Doosan DX220AF has a transport length of 9.49 meters, a transport width of 3.19 meters, and a transport height of 3 meters.

What is the track width of the Doosan DX220AF's undercarriage?

The Doosan DX220AF has a track width of 800 mm in its undercarriage.

What are the dredging depth and maximum horizontal reach of the Doosan DX220AF?

The Doosan DX220AF has a dredging depth of 6.62 meters and a maximum horizontal reach of 9.73 meters.

What is the tear-out force of the Doosan DX220AF, given that no power rating data is available?

The Doosan DX220AF has a tear-out force of 142 kN. No power rating data is provided in the source.

What are the bucket specifications of the Doosan DX220AF crawler excavator?

The Doosan DX220AF has a bucket capacity of 0.92 cubic meters and a bucket width of 1.3 meters.

How much is a Doosan DX220AF Crawler excavator (2019u20132023) worth?

The residual value of the Doosan DX220AF depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
