DX200A Doosan excavator specs & Dimensions (2019 - 2023)

Doosan DX200A is a Crawler Excavator manufactured since 2019. It has a weight of 20 tons and a track width of 600 mm. The transpor…

Doosan DX200A is a Crawler Excavator manufactured since 2019. It has a weight of 20 tons and a track width of 600 mm. The transport dimensions are 9 meters in length, 2 meters in width, and 3 meters in height. The excavator features a tear-out force of 151 kN, a dredging depth of 6 meters, and a maximum horizontal reach of 9 meters. The bucket width is 1 meter, and it is equipped with air conditioning.

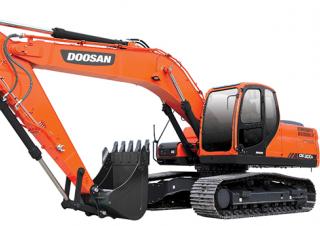

Crawler Excavators Doosan DX200A
Crawler Excavators Doosan DX200A
Crawler Excavators Doosan DX200A
Crawler Excavators Doosan DX200A

Technical specs - DX200A Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
20.6 t
Transport length
9.49 m
Transport width
2.8 m
Transport height
3 m
Bucket capacity
0.81 m³
Track width
600 mm
Max. Reach horizontal
9.73 m
Dredging depth
6.62 m
Tear-out force
151 kN
Bucket width
1.13 m
Model series
DX
Engine manuf.
Doosan
Engine type
DB58TIS
Engine power
115 kW
Displacement
5.79 l
Revolutions at max torque
1400 rpm
Max. torque
603 Nm
No. of cylinders
6
Cylinder bore x stroke
102 x 118 mm
Emission level
T2

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Doosan DX200A FAQ

When was the Doosan DX200A manufactured?

The Doosan DX200A was manufactured from 2019 to 2023.

How much does the Doosan DX200A weigh?

The Doosan DX200A weighs 20.6 tons.

What are the transport dimensions of the Doosan DX200A?

The Doosan DX200A has a transport length of 9.49 meters, a transport width of 2.8 meters, and a transport height of 3 meters.

What is the track width of the Doosan DX200A crawler excavator?

The Doosan DX200A crawler excavator has a track width of 600 mm.

What are the excavation performance specifications of the Doosan DX200A?

The Doosan DX200A has a dredging depth of 6.62 meters and a maximum horizontal reach of 9.73 meters.

What is the tear-out force of the Doosan DX200A?

The Doosan DX200A has a tear-out force of 151 kN.

What are the bucket specifications of the Doosan DX200A excavator?

The Doosan DX200A excavator has a bucket capacity of 0.81 cubic meters and a bucket width of 1.13 meters.

How much is a Doosan DX200A Crawler excavator (2019u20132023) worth?

The residual value of the Doosan DX200A depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Doosan DX200A overview

Doosan DX200A features overview

Newly Added Feature

The new DX200A hydraulic excavator has all the advantages of the previous model and now offers additional added value to the operator.


Performance & Productivity

The performance of the DX200A has a direct effect on its productivity. Its new improved engine and new EPOS™ controlled hydraulic system have combined to create an unbeatable hydraulic excavator, with a cost/performance ratio that makes the DX200A even more appealing.


Engine

Economics

The Doosan excavator, a combination of four advanced technologies, guarantees a significant reduction of maintenance costs thanks to its exceptionally low rate of fuel consumption.


Doosan Engine(DB58TIS)

Doosan product gives high performance through in-house engine. Doosan engine(in-house) perfectly harmonized with the hydraulic system and provides strong power. Mechanical engine provides high resistance to moisture, dust, and bad fuel quality. The best engine power in the industry(148HP) provides stable working speed even in the heavy workload situation.


Fuel Efficiency

The pump continues to supply flow even when the maximum pressure on the system is reached due to severe working environments and large workloads. Relief cutoff technology of DX200A prevents transfer of unnecessary flow to maintain powerful working level at the maximum value while reducing consumption of fuel.


Optimized Lever Control & Auto Idle

When operator takes a break and leaves the control joystick fixed, both of the engine and the pump are kept in standby mode and prevents unnecessary fuel consumption.


Pump Matching Technology

Engine & pump matching, the new technology of Doosan, fully resolves problems, low response time of the system, unnecessary fuel consumption. Matching response time between pump and engine efficiently reduces unnecessary fuel consumption as well as exhaust fumes.


Upper Structure

X-Chassis

The X-chassis frame section has been designed using finite element and 3-dimensional computer simulation, to ensure greater durability and optimum structural integrity. The swing gear is solid and stable.


Cab

Operator comfort

More space, better visibility, air conditioning with climate control, and a very comfortable seat. These are the elements that ensure the operator can work in the best possible conditions. Furthermore, a new, user-friendly colour 7” TFT LCD monitor panel gives full access to machine settings and maintenance data, allowing you to work safely and confidently with an accurate overview of all conditions.
