DX170LC-5 Doosan excavator specs & Dimensions (2020 - 2023)

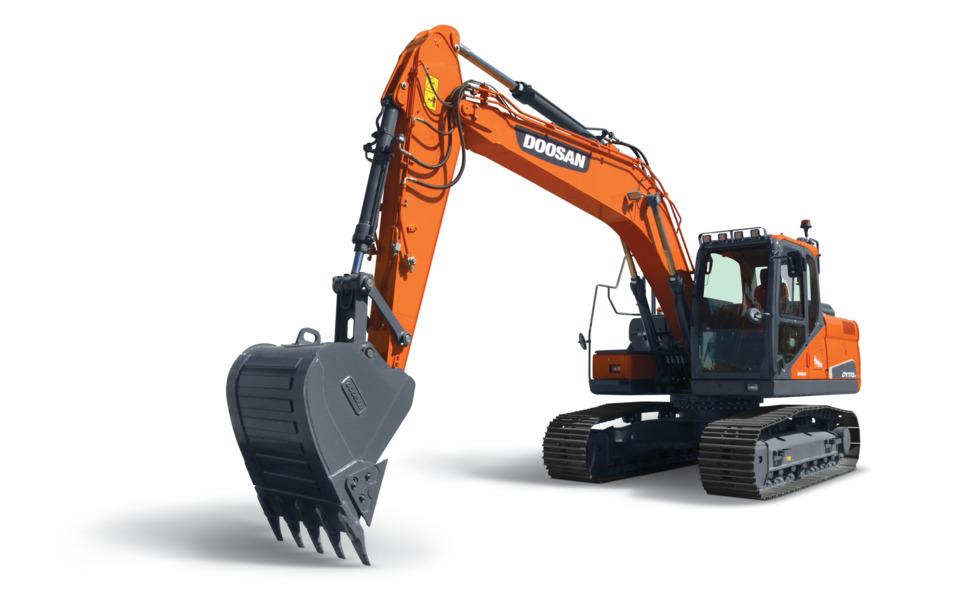

Doosan DX170LC-5 is a Crawler Excavator manufactured since 2020, with a weight of 17.407 tons. It features a track width of 600 mm…

Doosan DX170LC-5 is a Crawler Excavator manufactured since 2020, with a weight of 17.407 tons. It features a track width of 600 mm, a transport length of 8.25 meters, a transport width of 2.59 meters, and a transport height of 2.842 meters. The machine has a dredging depth of 6.085 meters and a maximum horizontal reach of 8.79 meters. It is equipped with a bucket capacity of 0.7 cubic meters and includes special equipment such as air conditioning and a diesel particulate filter.

Crawler Excavators Doosan DX170LC-5
Crawler Excavators Doosan DX170LC-5
Crawler Excavators Doosan DX170LC-5
Crawler Excavators Doosan DX170LC-5
Crawler Excavators Doosan DX170LC-5
Crawler Excavators Doosan DX170LC-5

Technical specs - DX170LC-5 Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
17.407 t
Transport length
8.25 m
Transport width
2.59 m
Transport height
2.842 m
Bucket capacity
0.7 m³
Track width
600 mm
Max. Reach horizontal
8.79 m
Dredging depth
6.085 m
Model series
DX
Engine manuf.
Perkins
Engine type
1204F
Engine power
98 kW
Displacement
4.4 l
Revolutions at max torque
1400 rpm
Max. torque
391 Nm
No. of cylinders
4
Cylinder bore x stroke
105x127 mm
Emission level
T4

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, tear-out force, bucket width, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Doosan DX170LC-5 FAQ

When was the Doosan DX170LC-5 manufactured?

The Doosan DX170LC-5 was manufactured from 2020 to 2023.

How much does the Doosan DX170LC-5 weigh?

The Doosan DX170LC-5 weighs 17.41 tons.

What are the transport dimensions of the Doosan DX170LC-5?

The Doosan DX170LC-5 has a transport length of 8.25 meters, a transport width of 2.59 meters, and a transport height of 2.84 meters.

What is the track width of the Doosan DX170LC-5's undercarriage?

The Doosan DX170LC-5 has a track width of 600 mm.

What are the excavation capabilities of the Doosan DX170LC-5?

The Doosan DX170LC-5 has a dredging depth of 6.085 meters and a maximum horizontal reach of 8.79 meters.

What is the bucket capacity of the Doosan DX170LC-5?

The Doosan DX170LC-5 has a bucket capacity of 0.7 cubic meters.

How much is a Doosan DX170LC-5 Crawler excavator (2020u20132023) worth?

The residual value of the Doosan DX170LC-5 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
