DX 85 R 3 Doosan excavator specs & Dimensions (2013 - 2015)

Model rating
5,00 / 10

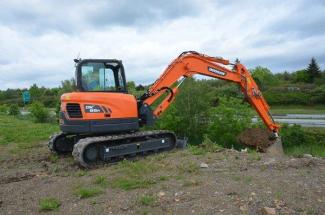

Doosan DX 85 R 3 is a Crawler Excavator manufactured from 2013 to 2015. It has a weight of 8.6 t and a track width of 450 mm. The …

Doosan DX 85 R 3 is a Crawler Excavator manufactured from 2013 to 2015. It has a weight of 8.6 t and a track width of 450 mm. The transport dimensions are 6.25 m in length, 2.3 m in width, and 2.64 m in height. The excavator features a tear-out force of 53.9 kN, a dredging depth of 4.72 m, and a maximum horizontal reach of 7.43 m. Special equipment includes air conditioning and a blade.

Crawler Excavators Doosan DX 85 R 3
Crawler Excavators Doosan DX 85 R 3
Crawler Excavators Doosan DX 85 R 3
Crawler Excavators Doosan DX 85 R 3
Crawler Excavators Doosan DX 85 R 3
Crawler Excavators Doosan DX 85 R 3
Crawler Excavators Doosan DX 85 R 3
Crawler Excavators Doosan DX 85 R 3
Crawler Excavators Doosan DX 85 R 3
Crawler Excavators Doosan DX 85 R 3

Technical specs - DX 85 R 3 Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.6 t
Transport length
6.25 m
Transport width
2.3 m
Transport height
2.64 m
Bucket capacity
0.28 m³
Track width
450 mm
Max. Reach horizontal
7.43 m
Dredging depth
4.72 m
Tear-out force
53.9 kN
Model series
DX
Engine manuf.
Yanmar
Engine type
4TNV98C
Engine power
44 kW
Displacement
3.32 l
Revolutions at max torque
2100 rpm

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Doosan DX 85 R 3 FAQ

When was the Doosan DX 85 R 3 manufactured?

The Doosan DX 85 R 3 was manufactured from 2013 to 2015.

How much does the Doosan DX 85 R 3 weigh?

The Doosan DX 85 R 3 weighs 8.6 tons.

What are the transport dimensions of the Doosan DX 85 R 3 crawler excavator?

The Doosan DX 85 R 3 has a transport length of 6.25 meters, a transport width of 2.3 meters, and a transport height of 2.64 meters.

What is the track width of the Doosan DX 85 R 3's undercarriage?

The Doosan DX 85 R 3 has a track width of 450 mm in its undercarriage.

What are the dredging depth and maximum horizontal reach of the Doosan DX 85 R 3?

The Doosan DX 85 R 3 has a dredging depth of 4.72 meters and a maximum horizontal reach of 7.43 meters.

What is the power rating of the Doosan DX 85 R 3?

The source data does not provide power rating information for the Doosan DX 85 R 3.

What is the bucket capacity of the Doosan DX 85 R 3 excavator?

The Doosan DX 85 R 3 excavator has a bucket capacity of 0.28 cubic meters.
