DX 80 R Doosan excavator specs & Dimensions (2008 - 2013)

Model rating
6,25 / 10

Doosan DX 80 R is a crawler excavator manufactured from 2008 to 2013, with a weight of 8.3 tons. It features a track width of 450 …

Doosan DX 80 R is a crawler excavator manufactured from 2008 to 2013, with a weight of 8.3 tons. It features a track width of 450 mm, a transport length of 6.17 meters, a transport width of 2.6 meters, and a transport height of 2.3 meters. This model is equipped with a blade.

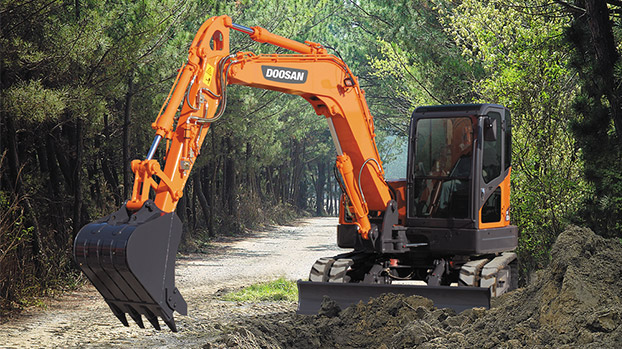

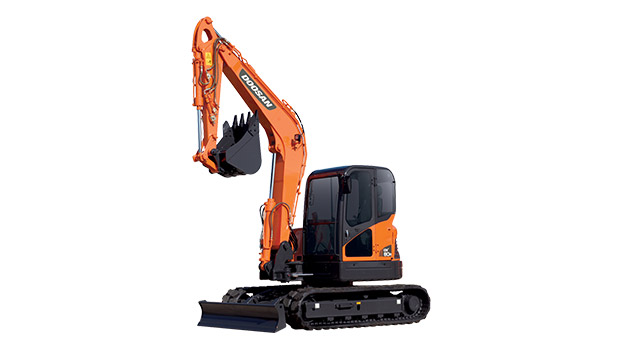

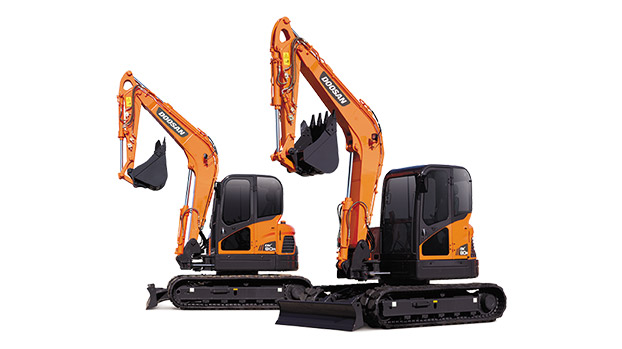

Crawler Excavators Doosan DX 80 R
Crawler Excavators Doosan DX 80 R
Crawler Excavators Doosan DX 80 R
Crawler Excavators Doosan DX 80 R
Crawler Excavators Doosan DX 80 R
Crawler Excavators Doosan DX 80 R

Technical specs - DX 80 R Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.3 t
Transport length
6.17 m
Transport width
2.6 m
Transport height
2.3 m
Bucket capacity
0.28 m³
Track width
450 mm
Max. Reach horizontal
7.48 m
Dredging depth
4.15 m
Tear-out force
54.9 kN
Bucket width
0.8 m
Model series
DX
Engine manuf.
Yanmar
Engine type
4TNV98
Engine power
40.7 kW
Displacement
3.32 l
Revolutions at max torque
2000 rpm

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Doosan DX 80 R FAQ

When was the Doosan DX 80 R manufactured?

The Doosan DX 80 R was manufactured from 2008 to 2013.

How much does the Doosan DX 80 R weigh?

The Doosan DX 80 R weighs 8.3 tons.

What are the transport dimensions of the Doosan DX 80 R?

The Doosan DX 80 R has a transport length of 6.17 meters, a transport width of 2.6 meters, and a transport height of 2.3 meters.

What is the track width of the Doosan DX 80 R's undercarriage?

The Doosan DX 80 R has a track width of 450 mm.

What are the excavation performance specifications of the Doosan DX 80 R?

The Doosan DX 80 R has a dredging depth of 4.15 meters and a maximum horizontal reach of 7.48 meters.

What is the tear-out force of the Doosan DX 80 R?

The Doosan DX 80 R has a tear-out force of 54.9 kN.

What are the specifications of the primary work tool bucket on the Doosan DX 80 R?

The Doosan DX 80 R has a bucket with a capacity of 0.28 cubic meters and a width of 0.8 meters.

How much is a Doosan DX 80 R Crawler excavator (2008u20132013) worth?

The residual value of the Doosan DX 80 R depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Reviews

Model rating
6,25 / 10
Quotation mark

Doosan DX 80 R user from

I am usually working on bigger projects but the current job is very tight on space. The 360 degree and 180 degree format has made the job half as easy. 360 and 180 operations are nothing new to me I should add.

Doosan DX 80 R overview

Doosan DX 80 R features overview

DOOSAN DX80R hydraulic excavator: a new model with novel features

The new DX80R hydraulic excavator offers additional value to the operator. The new DX80R was developed with the concept of “providing optimum value to the end user”. In concrete terms, this translates into Increased production and improved fuel economy achieved with the electronic optimization of the hydraulic system and the new generation engine. Improved ergonomics, increased comfort and excellent all round visibility ensuring a safe and pleasant working environment. Improved reliability, using high performance materials combined with new methods of structural stress analysis, have lead to increased component life expectancy, thus reducing running costs. Reduced maintenance increases the availability and lowers the operating costs of the excavator.


Performance

DX80R ensures best performance with a powerful excavating force and a high-tech hydraulic system for better operating efficiency at any work site! Excellent performance is its basic feature! Overall safety and convenience are also key factors when considering excellent performance.


Maintenance

The most advanced technology developed by Doosan was integrated into the DX80R excavator for powerful performance, simple and easy maintenance. This provides the operator with convenient maintenance check points and maximizes the work efficiency of the DX80R. The reliability of a machine reduces the overall lifetime operating costs. Doosan uses finite element and 3-dimensional computer simulation.


Cab

Comfort

This standard-duty machine offers a spacious operating area that is only found in medium and heavy-duty machines. The working controls in the cabin are ergonomically designed to ensure convenience and comfort for the operator.
