DX62R-7 Develon excavator specs & Dimensions (2023 - 2026)

Weight: 6.216t – Transport length: 5.631m – Transport width: 1.98m – Transport height: 2.575m – Bucket capacity: 0.175m³ – Bucket …

Weight: 6.216t – Transport length: 5.631m – Transport width: 1.98m – Transport height: 2.575m – Bucket capacity: 0.175m³ – Bucket capacity min.: 0.175m³

Check out detailed specifications, information and technical data for Develon DX62R-7 excavator manufactured between 2023 - 2026. Get more in-depth insight with Develon DX62R-7 digger specifications. See information, like: Weight: 6.216t – Transport length: 5.631m – Transport width: 1.98m – Transport height: 2.575m – Bucket capacity: 0.175m³ – Bucket capacity min.: 0.175m³ and more.

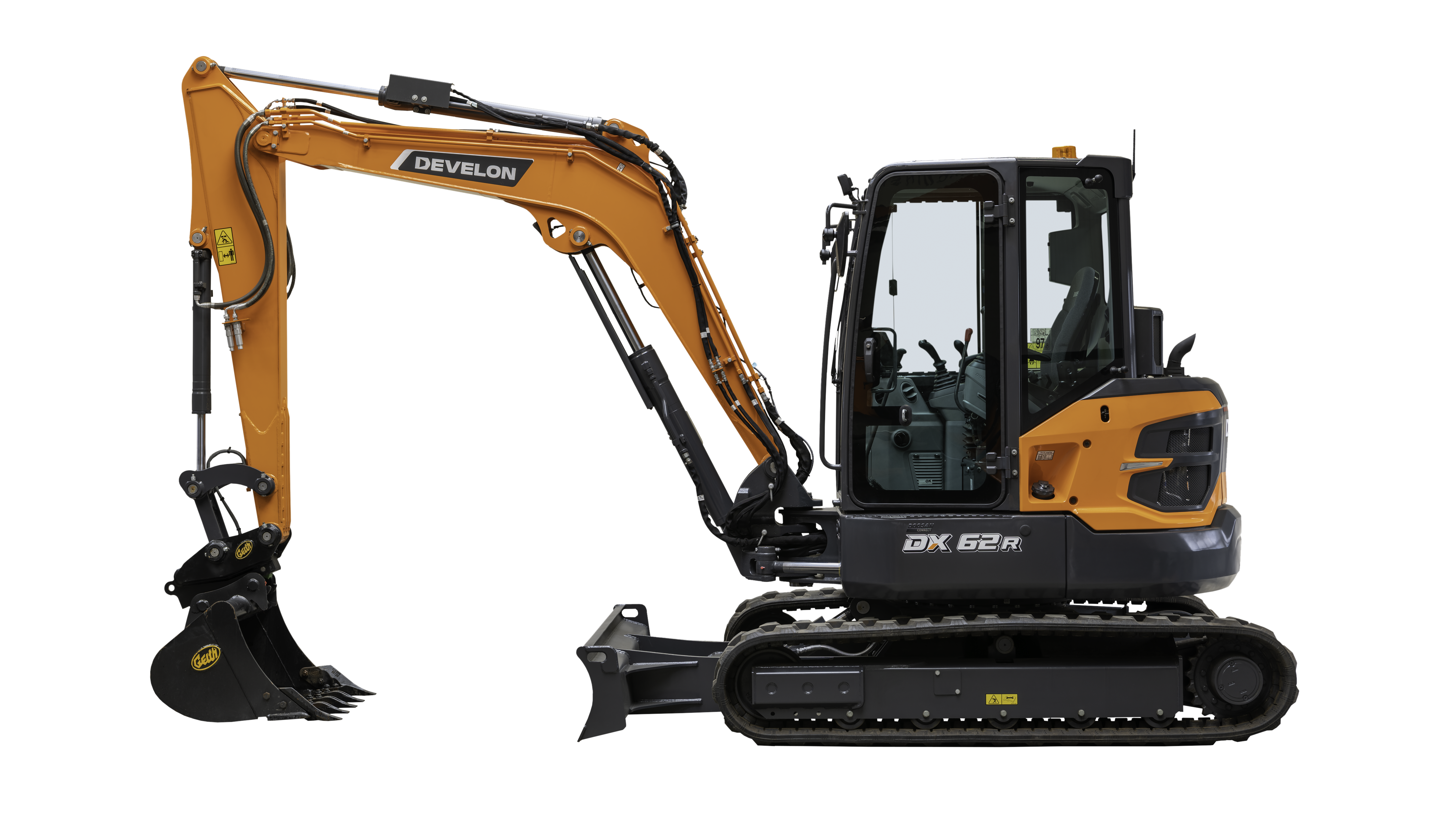

Crawler Excavators Develon DX62R-7

Visit Develon live at

Technical specs - DX62R-7 Develon

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
6.216 t
Transport length
5.631 m
Transport width
1.98 m
Transport height
2.575 m
Bucket capacity
0.175 m³
Bucket capacity min.
0.175 m³
Bucket capacity max.
0.175 m³
Track width
400 mm
Max. Reach horizontal
6.61 m
Dredging depth
4.095 m
Tear-out force
28 kN
Bucket width
0.712 m
Model series
DX
Engine manuf.
Develon
Engine type
DM02VB
Engine power
44.3 kW
Dimension lxwxh
742x576x706 mm
Displacement
2.392 l
Max. torque
260/1600 Nm
No. of cylinders
4
Cylinder bore x stroke
90 x 94 mm
Emission level
Stage V

More technical details, like: undercarriage, boom, revolutions at max torque are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Develon DX62R-7 FAQ

When was the Develon DX62R-7 manufactured?

The Develon DX62R-7 was first produced in 2023.

How much does the Develon DX62R-7 mini excavator weigh?

The Develon DX62R-7 mini excavator weighs 6.216 tons.

What are the transport dimensions of the Develon DX62R-7 mini excavator?

The Develon DX62R-7 has a transport length of 5.631 meters, a transport width of 1.98 meters, and a transport height of 2.575 meters.

What is the track width of the Develon DX62R-7 mini excavator's undercarriage?

The Develon DX62R-7 mini excavator has a track width of 400 mm.

What are the excavation performance specifications of the Develon DX62R-7 mini excavator?

The Develon DX62R-7 has a dredging depth of 4.095 meters and a maximum horizontal reach of 6.61 meters.

What is the tear-out force of the Develon DX62R-7 mini excavator?

The Develon DX62R-7 has a tear-out force of 28 kN.

What are the specifications of the primary work tool on the Develon DX62R-7 mini excavator?

The primary work tool of the Develon DX62R-7 has a bucket capacity of 0.175 cubic meters and a bucket width of 0.712 meters.

What operator safety and support features does the Develon DX62R-7 have?

The Develon DX62R-7 is equipped with a cabin that includes ROPS (Roll-Over Protective Structure) for driver protection.

How much is a Develon DX62R-7 Mini excavator (2023u20132025) worth?

The residual value of the Develon DX62R-7 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
