DX255LC-7 Develon excavator specs & Dimensions (2023 - 2026)

Weight: 25.7t – Transport length: 10.145m – Transport width: 3.2m – Transport height: 2.995m – Bucket capacity: 1.17m³ – Bucket ca…

Weight: 25.7t – Transport length: 10.145m – Transport width: 3.2m – Transport height: 2.995m – Bucket capacity: 1.17m³ – Bucket capacity min.: 0.51m³

Check out detailed specifications, information and technical data for Develon DX255LC-7 excavator manufactured between 2023 - 2026. Get more in-depth insight with Develon DX255LC-7 digger specifications. See information, like: Weight: 25.7t – Transport length: 10.145m – Transport width: 3.2m – Transport height: 2.995m – Bucket capacity: 1.17m³ – Bucket capacity min.: 0.51m³ and more.

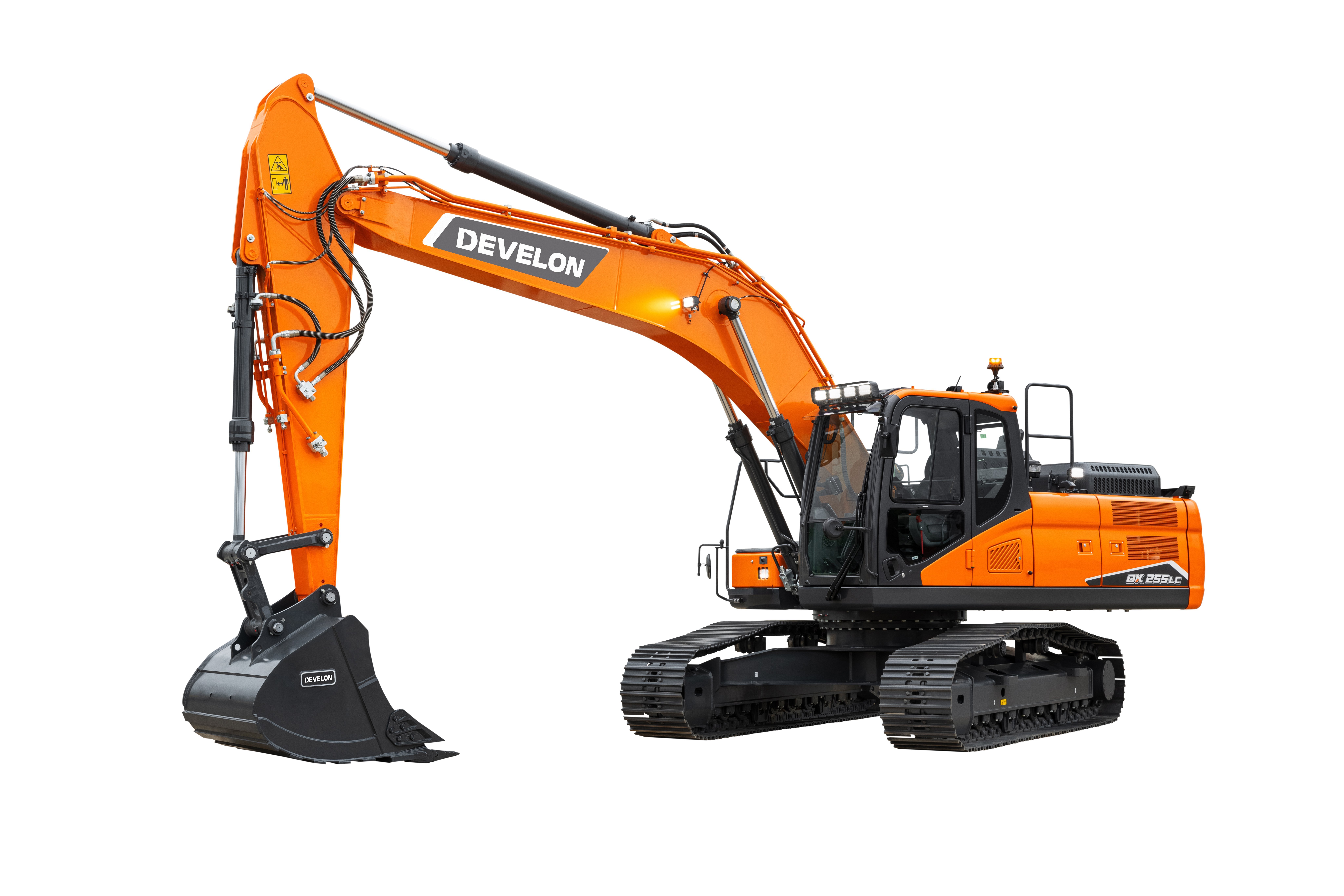

Crawler Excavators Develon DX255LC-7

Visit Develon live at

Technical specs - DX255LC-7 Develon

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
25.7 t
Transport length
10.145 m
Transport width
3.2 m
Transport height
2.995 m
Bucket capacity
1.17 m³
Bucket capacity min.
0.51 m³
Bucket capacity max.
1.51 m³
Undercarriage
LC
Track width
600 mm
Boom
MB
Max. Reach horizontal
9.455 m
Dredging depth
6.31 m
Tear-out force
167 kN
Bucket width
1.43 m
Model series
DX
Engine manuf.
Develon
Engine type
DL06V
Engine power
141.3 kW
Dimension lxwxh
1094x847x948 mm
Displacement
5.89 l
Revolutions at max torque
1900 rpm
Max. torque
804/1400 Nm
No. of cylinders
6
Cylinder bore x stroke
100x125 mm
Emission level
Stage V

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Develon DX255LC-7 FAQ

When was the Develon DX255LC-7 manufactured?

The Develon DX255LC-7 was first produced in 2023.

How much does the Develon DX255LC-7 weigh?

The Develon DX255LC-7 weighs 25.7 tons.

What are the transport dimensions of the Develon DX255LC-7?

The Develon DX255LC-7 has a transport length of 10.145 meters, a transport width of 3.2 meters, and a transport height of 2.995 meters.

What are the undercarriage specifications of the Develon DX255LC-7?

The Develon DX255LC-7 has a long undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Develon DX255LC-7?

The Develon DX255LC-7 has a dredging depth of 6.31 meters, a maximum horizontal reach of 9.455 meters, and features a monobloc boom.

What is the tear-out force of the Develon DX255LC-7?

The Develon DX255LC-7 has a tear-out force of 167 kN.

What are the specifications of the bucket on the Develon DX255LC-7 crawler excavator?

The Develon DX255LC-7 has a bucket with a capacity ranging from 0.51 to 1.51 cubic meters, a standard bucket capacity of 1.17 cubic meters, and a bucket width of 1.43 meters.

How much is a Develon DX255LC-7 Crawler excavator (2023u20132025) worth?

The residual value of the Develon DX255LC-7 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
