DX235LC-7 Develon excavator specs & Dimensions (2023 - 2026)

Weight: 23.2t – Transport length: 9.532m – Transport width: 2.99m – Transport height: 2.854m – Bucket capacity: 1.05m³ – Bucket ca…

Weight: 23.2t – Transport length: 9.532m – Transport width: 2.99m – Transport height: 2.854m – Bucket capacity: 1.05m³ – Bucket capacity min.: 0.51m³

Check out detailed specifications, information and technical data for Develon DX235LC-7 excavator manufactured between 2023 - 2026. Get more in-depth insight with Develon DX235LC-7 digger specifications. See information, like: Weight: 23.2t – Transport length: 9.532m – Transport width: 2.99m – Transport height: 2.854m – Bucket capacity: 1.05m³ – Bucket capacity min.: 0.51m³ and more.

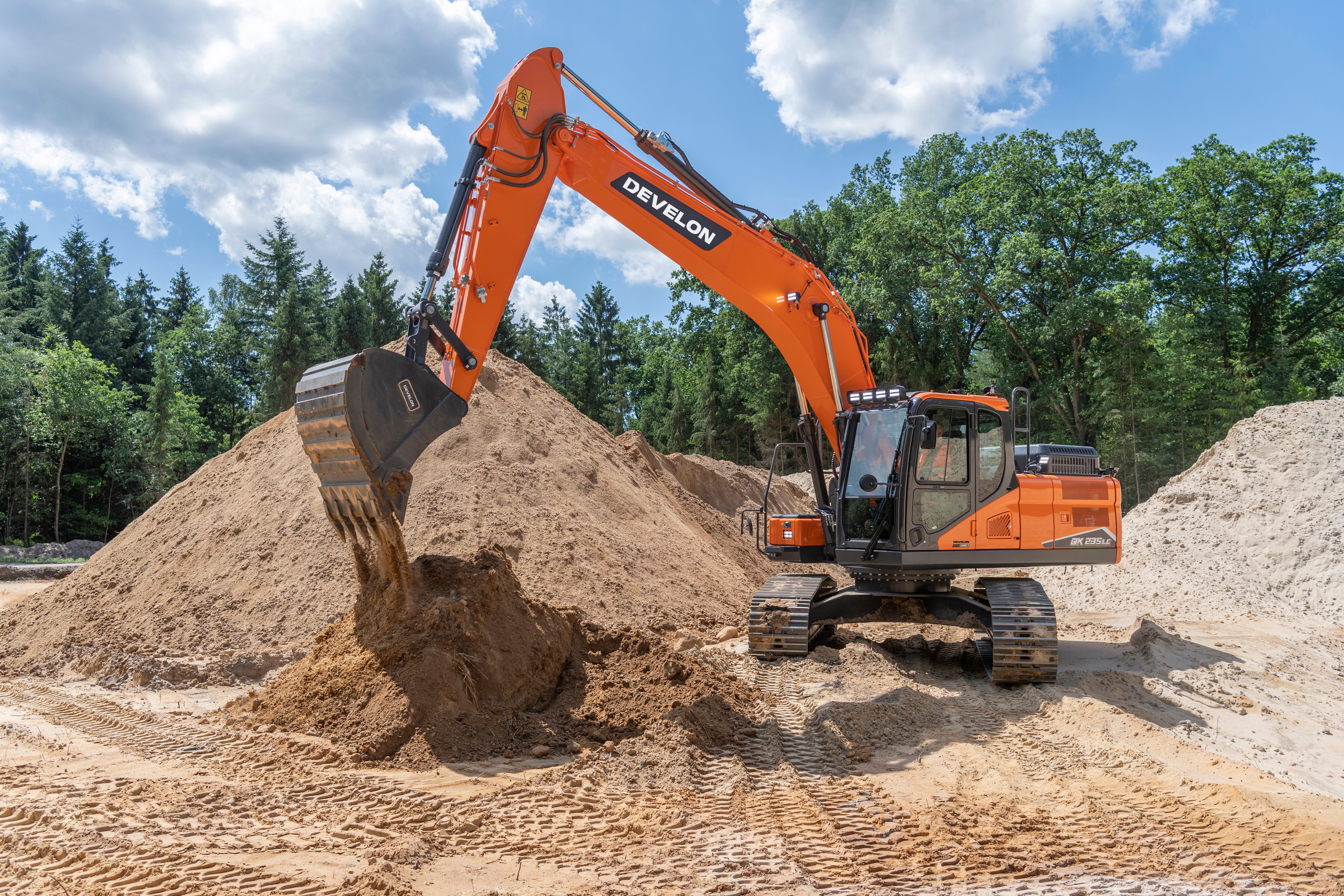

Crawler Excavators Develon DX235LC-7

Visit Develon live at

Technical specs - DX235LC-7 Develon

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
23.2 t
Transport length
9.532 m
Transport width
2.99 m
Transport height
2.854 m
Bucket capacity
1.05 m³
Bucket capacity min.
0.51 m³
Bucket capacity max.
1.32 m³
Undercarriage
LC
Track width
600 mm
Boom
MB
Max. Reach horizontal
9.285 m
Dredging depth
6.095 m
Tear-out force
153 kN
Bucket width
1.309 m
Model series
DX
Engine manuf.
Develon
Engine type
DL06V
Engine power
129 kW
Dimension lxwxh
1094x847x948 mm
Displacement
5.89 l
Revolutions at max torque
1800 rpm
Max. torque
804/1400 Nm
No. of cylinders
6
Cylinder bore x stroke
100x125 mm
Emission level
Stage V

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Develon DX235LC-7 FAQ

When was the Develon DX235LC-7 manufactured?

The Develon DX235LC-7 was first produced in 2023.

How much does the Develon DX235LC-7 weigh?

The Develon DX235LC-7 weighs 23.2 tons.

What are the transport dimensions of the Develon DX235LC-7 crawler excavator?

The Develon DX235LC-7 has a transport length of 9.532 meters, a transport width of 2.99 meters, and a transport height of 2.854 meters.

What are the undercarriage specifications of the Develon DX235LC-7?

The Develon DX235LC-7 has a long undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Develon DX235LC-7?

The Develon DX235LC-7 has a dredging depth of 6.095 meters, a maximum horizontal reach of 9.285 meters, and features a Monobloc boom.

Are there any power ratings available for the Develon DX235LC-7?

No power ratings are provided for the Develon DX235LC-7 in the available data.

What are the specifications of the primary work tool bucket on the Develon DX235LC-7?

The Develon DX235LC-7's primary work tool bucket has a capacity of 1.05 mu00b3, with a maximum capacity of 1.32 mu00b3, a minimum capacity of 0.51 mu00b3, and a bucket width of 1.309 meters.

How much is a Develon DX235LC-7 Crawler excavator (2023u20132025) worth?

The residual value of the Develon DX235LC-7 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
