DX140RDM-7 Develon excavator specs & Dimensions (2024 - 2026)

Weight: 22.5t – Transport length: 10.5m – Transport width: 2.04m – Transport height: 3.02m – Undercarriage: LCV – Track width: 500…

Weight: 22.5t – Transport length: 10.5m – Transport width: 2.04m – Transport height: 3.02m – Undercarriage: LCV – Track width: 500mm

Check out detailed specifications, information and technical data for Develon DX140RDM-7 excavator manufactured between 2024 - 2026. Get more in-depth insight with Develon DX140RDM-7 digger specifications. See information, like: Weight: 22.5t – Transport length: 10.5m – Transport width: 2.04m – Transport height: 3.02m – Undercarriage: LCV – Track width: 500mm and more.

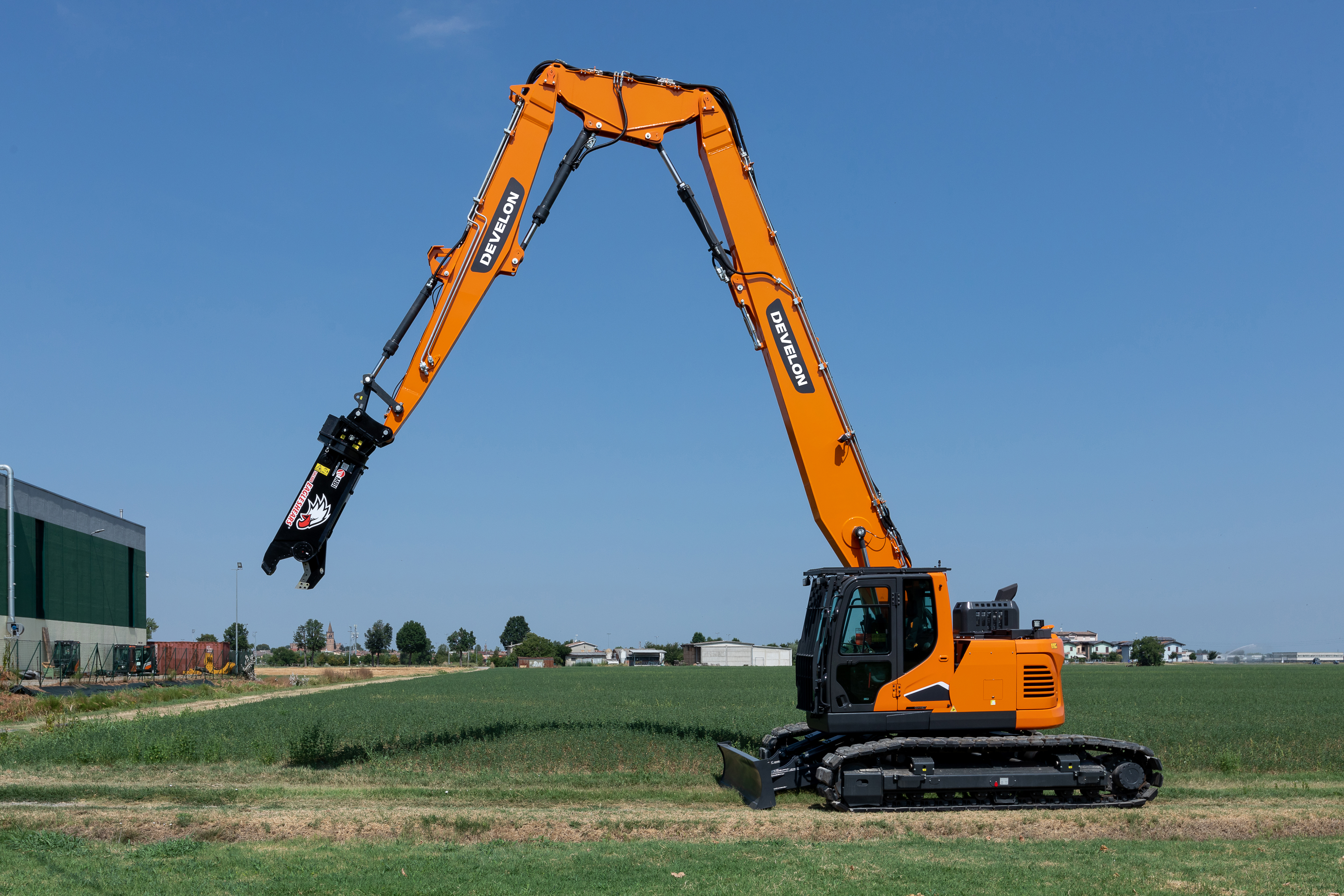

Crawler Excavators Develon DX140RDM-7

Visit Develon live at

Technical specs - DX140RDM-7 Develon

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
22.5 t
Transport length
10.5 m
Transport width
2.04 m
Transport height
3.02 m
Undercarriage
LCV
Track width
500 mm
Boom
MB
Max. Reach horizontal
16 m
Model series
DX
Engine manuf.
Develon
Engine type
DM03VA
Engine power
86 kW
Dimension lxwxh
838x684x835 mm
Displacement
3.409 l
Revolutions at max torque
2000 rpm
Max. torque
451/1400 Nm
No. of cylinders
4
Cylinder bore x stroke
98x113 mm
Emission level
Stage V

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., dredging depth, tear-out force, bucket width are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
Yes
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Develon DX140RDM-7 FAQ

When was the Develon DX140RDM-7 manufactured?

The Develon DX140RDM-7 was first produced in 2024.

How much does the Develon DX140RDM-7 weigh?

The Develon DX140RDM-7 weighs 22.5 tons.

What are the transport dimensions of the Develon DX140RDM-7 crawler excavator?

The Develon DX140RDM-7 has a transport length of 10.5 meters, a transport width of 2.04 meters, and a transport height of 3.02 meters.

What are the undercarriage specifications of the Develon DX140RDM-7?

The Develon DX140RDM-7 has a long undercarriage that is hydraulically extendable and features a track width of 500 mm.

What are the excavation performance specifications of the Develon DX140RDM-7?

The Develon DX140RDM-7 has a maximum horizontal reach of 16 meters and is equipped with a monobloc boom.

What are the specifications of the primary work tool on the Develon DX140RDM-7?

The available data does not provide specifications for the primary work tool of the Develon DX140RDM-7.

How much is a Develon DX140RDM-7 Crawler excavator (2024u20132025) worth?

The residual value of the Develon DX140RDM-7 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
