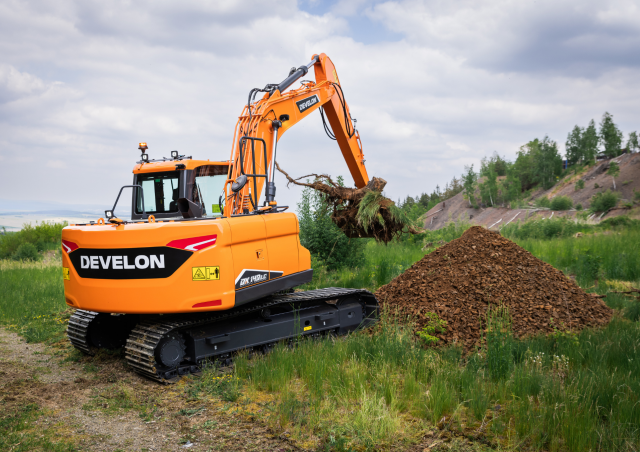

DX140LC-7K Develon excavator specs & Dimensions (2023 - 2026)

Weight: 14.4t – Transport length: 7.69m – Transport width: 2.59m – Transport height: 2.785m – Bucket capacity: 0.59m³ – Bucket cap…

Weight: 14.4t – Transport length: 7.69m – Transport width: 2.59m – Transport height: 2.785m – Bucket capacity: 0.59m³ – Bucket capacity min.: 0.24m³

Check out detailed specifications, information and technical data for Develon DX140LC-7K excavator manufactured between 2023 - 2026. Get more in-depth insight with Develon DX140LC-7K digger specifications. See information, like: Weight: 14.4t – Transport length: 7.69m – Transport width: 2.59m – Transport height: 2.785m – Bucket capacity: 0.59m³ – Bucket capacity min.: 0.24m³ and more.

Crawler Excavators Develon DX140LC-7K

Technical specs - DX140LC-7K Develon

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
14.4 t
Transport length
7.69 m
Transport width
2.59 m
Transport height
2.785 m
Bucket capacity
0.59 m³
Bucket capacity min.
0.24 m³
Bucket capacity max.
0.76 m³
Undercarriage
LC
Track width
600 mm
Boom
MB
Max. Reach horizontal
7.66 m
Dredging depth
5.235 m
Tear-out force
103 kN
Bucket width
1.081 m
Model series
DX
Engine manuf.
Develon
Engine type
DM03VA
Engine power
86 kW
Dimension lxwxh
838x684x835 mm
Displacement
3.409 l
Revolutions at max torque
2000 rpm
Max. torque
451/1400 Nm
No. of cylinders
4
Cylinder bore x stroke
98x113 mm
Emission level
Stage V

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Develon DX140LC-7K FAQ

When was the Develon DX140LC-7K manufactured?

The Develon DX140LC-7K was first produced in 2023.

How much does the Develon DX140LC-7K weigh?

The Develon DX140LC-7K weighs 14.4 tons.

What are the transport dimensions of the Develon DX140LC-7K crawler excavator?

The Develon DX140LC-7K has a transport length of 7.69 meters, a transport width of 2.59 meters, and a transport height of 2.785 meters.

What are the undercarriage specifications of the Develon DX140LC-7K?

The Develon DX140LC-7K has a long undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Develon DX140LC-7K?

The Develon DX140LC-7K has a dredging depth of 5.235 meters, a maximum horizontal reach of 7.66 meters, and features a Monobloc boom.

What are the power ratings of the Develon DX140LC-7K?

The source data does not provide any power rating information for the Develon DX140LC-7K.

What are the specifications of the primary work tool bucket on the Develon DX140LC-7K?

The Develon DX140LC-7K's primary work tool bucket has a capacity of 0.59 mu00b3, with a maximum capacity of 0.76 mu00b3, a minimum capacity of 0.24 mu00b3, and a width of 1.081 meters.

How much is a Develon DX140LC-7K Crawler excavator (2023u20132025) worth?

The residual value of the Develon DX140LC-7K depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
