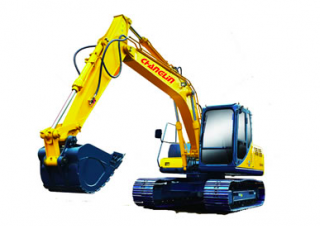

ZG3150-9 Changlin excavator specs & Dimensions (2017 - 2026)

Changlin ZG3150-9 is a crawler excavator manufactured since 2017. It has a weight of 14 tons, a transport length of 7.76 meters, a…

Changlin ZG3150-9 is a crawler excavator manufactured since 2017. It has a weight of 14 tons, a transport length of 7.76 meters, a transport width of 2.6 meters, and a transport height of 3.05 meters. The machine features a tear-out force of 77 kN, a dredging depth of 5.495 meters, and a maximum horizontal reach of 8.34 meters. The bucket capacity is 0.6 cubic meters.

Crawler Excavators Changlin ZG3150-9

Technical specs - ZG3150-9 Changlin

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
14 t
Transport length
7.76 m
Transport width
2.6 m
Transport height
3.05 m
Bucket capacity
0.6 m³
Undercarriage
SL
Max. Reach horizontal
8.34 m
Dredging depth
5.495 m
Tear-out force
77 kN
Model series
ZG
Engine manuf.
Cummins
Engine type
B3.9-C
Engine power
86 kW

More technical details, like: bucket capacity min., bucket capacity max., track width, boom, bucket width, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Changlin ZG3150-9 FAQ

When was the Changlin ZG3150-9 manufactured?

The Changlin ZG3150-9 was first produced in 2017.

What is the weight of the Changlin ZG3150-9 crawler excavator?

The Changlin ZG3150-9 crawler excavator weighs 14 tons.

What are the transport dimensions of the Changlin ZG3150-9 crawler excavator?

The Changlin ZG3150-9 crawler excavator has a transport length of 7.76 meters, a transport width of 2.6 meters, and a transport height of 3.05 meters.

What type of undercarriage does the Changlin ZG3150-9 have?

The Changlin ZG3150-9 has a standard undercarriage.

What are the excavation performance specifications of the Changlin ZG3150-9?

The Changlin ZG3150-9 has a dredging depth of 5.495 meters and a maximum horizontal reach of 8.34 meters.

What are the power ratings of the Changlin ZG3150-9?

The available data does not provide power ratings for the Changlin ZG3150-9.

What is the bucket capacity of the Changlin ZG3150-9?

The bucket capacity of the Changlin ZG3150-9 is 0.6 cubic meters.
